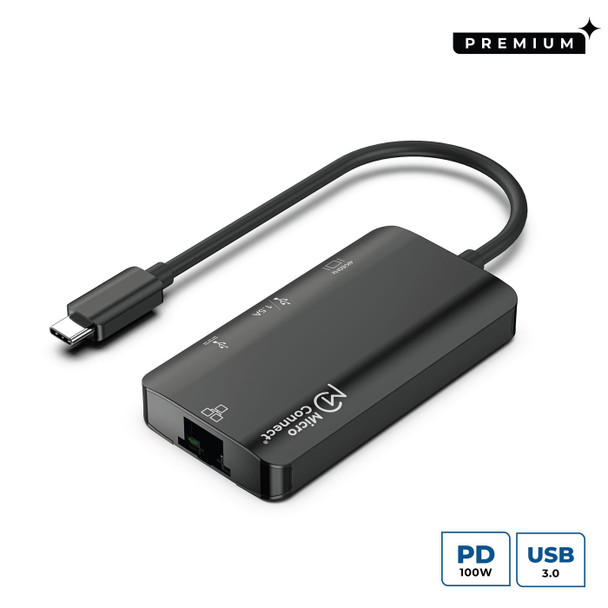

MicroConnect USB3.1CCOM16 USB-C Mini Dock. USB-C to USB3.1CCOM16

This is a USB-C 4-in-1 hub with HDMI, USB-A?RJ45 and Type-C female port, providing an ideal solution for extending the port of Type-C/Thunderbolt 3 host (PC/Laptop/Mobile phone,etc.),especially for those host with a single USB-C port. This hub adopts the latest DP1.4 Alt mode supported IC, enabling to output HDMI video with max 4k/60Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. RJ45 helps host to get access to super fast Ethernet network. Besides, the USB-C female supports PD 3.0 with max 100W PD Charging when connecting a PD Adapter and supports max 5Gbps data transmission when connecting a USB-C device.It can work on all DP Alt mode supported Type-C host.

Network



Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Ethernet LAN data rates



10, 100, 1000


Wake-on-LAN ready



Yes


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 45 �C


Storage relative humidity (H-H)



10 - 90 %


Storage temperature (T-T)



-10 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.05 kg


Height (package,cm)



1.6 cm


Width (package,cm)



27.9 cm


Performance



Card reader integrated



No


Certification



FCC, CE


Plug and Play



Yes


Product colour



Grey


Ports & interfaces



Connectivity technology



Wired


HDMI ports quantity



1


Host interface



USB 3.2 Gen 1 (3.1 Gen 1) Type-C


Microphone in



No


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity



1


USB connector type



USB Type-C


USB Power Delivery



Yes


USB Power Delivery up to



100 Watt


Power



Output current



1.5 A


Output voltage



5 V


Power connector



USB Type-C


Power source type



USB


Product dimensions



Net Weight (Product, kg)



0.04 kg


Vendor information



Brand Name


MicroConnect


Warranty



25 Year(s)
