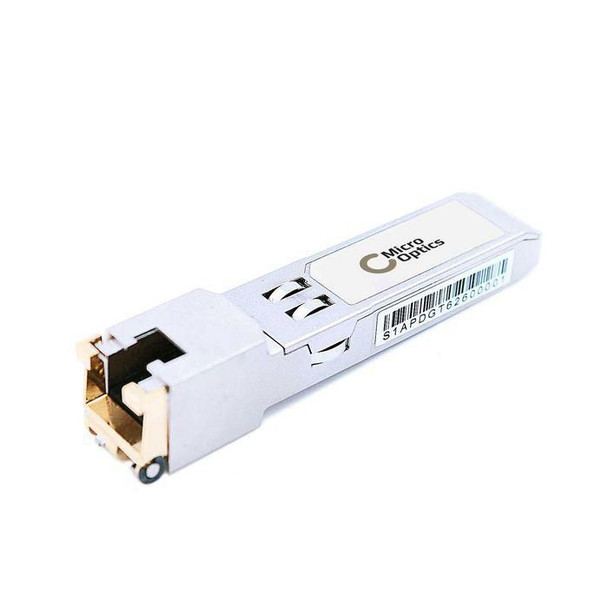

MicroOptics MO-CM-SFP-10G-COPPER Cambium compaible Networks MO-CM-SFP-10G-COPPER

This Small Form Pluggable Plus (SFP+) transceiver is a high performance, cost effective module compliant with the 10 Gigabit Ethernet and 10G BASE-T standards as specified in IEEE 802. 3-2015 and IEEE 802.3an, which supporting 10Gbps data-rate up to 30 meters reach over shielded twistedpair category 6A cable. The module supports 10Gbps full duplex data-links with 16-level Pulse Amplitude Modulation (PAM) signals. The module provides standard serial ID information compliant with SFP+ MSA, which can be accessed with address of A0h via the 2wire serial bus. The physical IC can also be accessed via 2wire serial bus at address ACh.

Features



Brand compatibility



Cambium Networks


Easy to install



Yes


Hot-Plug support



Yes


Hot-swap



Yes


Plug and Play



Yes


RoHS compliance



Yes


Operational conditions



Operating temperature (T-T)



0 - 70 �C


Package dimensions



Depth (package,cm)



6.5 cm


Gross Weight (Package, kg)



0.02 kg


Height (package,cm)



2.4 cm


Width (package,cm)



10.5 cm


Performance



Auto MDI/MDI-X



Yes


Interface type



RJ-45


Maximum data transfer rate



10000 Mbit/s


Maximum transfer distance



30 m


Networking standards



IEEE 802.3an, IEEE 802.3z


SFP transceiver type



Copper


Power



Input voltage



3.3 V


Product dimensions



Net Weight (Product, kg)



0.015 kg


Vendor information



Brand Name


Lanview


Warranty



3 Year(s)
