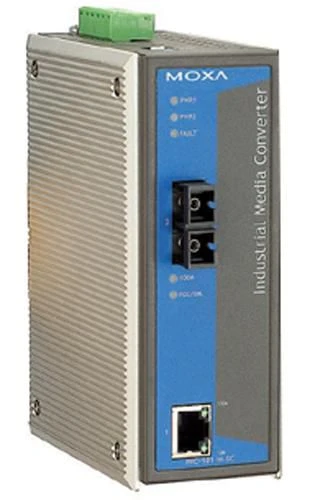

Moxa 39196 INDUSTRIAL MEDIA CONVERTER 10/ 39196

Industrial 10/100BaseT(X) to 100BaseFX Media Converters
The IMC-101 industrial media converters provide industrial grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The IMC-101’s reliable industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss. The IMC-101 media converters are designed for harsh industrial environments, such as in hazardous locations (Class 1, Division 2/Zone 2, DNV, and GL Certification), and comply with FCC, TV, UL, and CE standards. The IMC-101 series is available in models that support an operating temperature of 0 to 60?C, and an extended operating temperature of -40 to 75?C. All IMC-101 series are subjected to a 100% burn-in test.

Features:- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X;
- Link Fault Pass-Through (LFP) (media converters should work as a pair);
- Power failure, port break alarm by relay output;
- Redundant power inputs;
- 40 to 75°C operating temperature range (T models);
- Designed for hazardous locations (Class 1 Div. 2/Zone 2).

Design



Certification



UL, CSA, FCC, CISPR


Compliance industry standards



IEEE 802.3, IEEE 802.3u


Network



Cabling technology



10/100Base-T(X), 100Base-FX


Maximum data transfer rate



100 Mbit/s


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 60 °C


Storage temperature (T-T)



-40 - 85 °C


Other features



Dimensions (WxDxH)



53.6 x 135 x 105 mm


Fiber type



50/125, 62.5/125 µm


Full duplex



Yes


Interface



RJ-45, SC (2.5mm)


Operating temperature (T-T)



32 - 140 °F


Power budget



12 dB


Power requirements



24V, 0.16A


Package dimensions



Depth (package,cm)



20 cm


Gross Weight (Package, kg)



0.9 kg


Height (package,cm)



9.5 cm


Width (package,cm)



17 cm


Performance



Maximum transfer distance



5000 m


Mean time between failures (MTBF)



401000 Hour


Sensitivity



-32 dBmW


Wavelength



1310 nm


Ports & interfaces



Connectivity technology



Wired


Product dimensions



Net Weight (Product, kg)



0.8 kg


Vendor information



Brand Name


Moxa


Warranty



2 Year(s)
