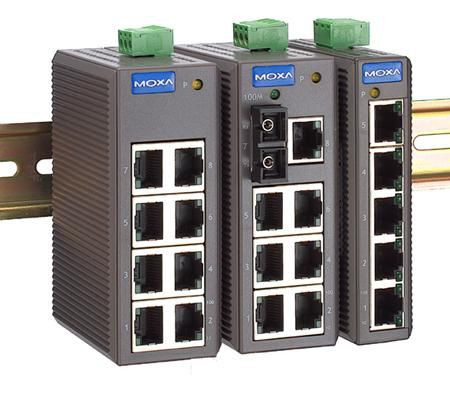

Moxa 41375 INDUSTRIAL UNMANAGED ETHERNETS 41375

The EDS-208/205 series of industrial Ethernet switches are entry-level industrial 8/5-port Ethernet switches that support IEEE802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. EDS-208/205 series switches are rated to operate at temperatures ranging from -10 to 60�C, and are rugged enough forany harsh industrial environment. EDS-208/205 series switches can be easily installed with DIN-Rail mounting as well as distribution boxes. The DIN-rail mounting ability, wide operating temperature, and the the IP30 case with LED indicators make the plug-and-play EDS-208/205 switches easy to use and reliable.

-High Performance Network Switching Technology
10/100BaseT(X) (RJ45) and 100BaseFX (Multi mode, SC/ST connector)
Broadcast Storm Protection
IEEE 802.3/802.3u/802.3x supports
Store and Forward switching process type
10/100M, Full/Half-Duplex, MDI/MDI-X auto-sensing
-Industrial Rugged Design
Operating temperature range from -10 to 60�C
Case designed meets IP30 protection standard
Power inputs support 24 VDC or 24 VAC
DIN-Rail mounting ability
-Recommeded Accessories
DR Series DIN-Rail 24 VDC power supplies

Design



Safety



UL508, UL60950-1


Logistics data



Harmonized System (HS) code



85176990


Management features



Switch type



Unmanaged


Operational conditions



Operating temperature (T-T)



-10 - 60 �C


Relative humidity



5 - 95 %


Storage temperature (T-T)



-40 - 85 �C


Other features



Dimensions (WxDxH)



40 x 109 x 95 mm


Power requirements



12 - 45 VDC, 18 - 30 VAC (47 - 63 Hz)


Package dimensions



Depth (package,cm)



21 cm


Gross Weight (Package, kg)



0.4 kg


Height (package,cm)



7.5 cm


Width (package,cm)



15 cm


Performance



Harmonized System (HS) code



85176990


Mean time between failures (MTBF)



368000 Hour


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



0.30000000000000004 kg


Vendor information



Brand Name


Moxa


Warranty



2 Year(s)
