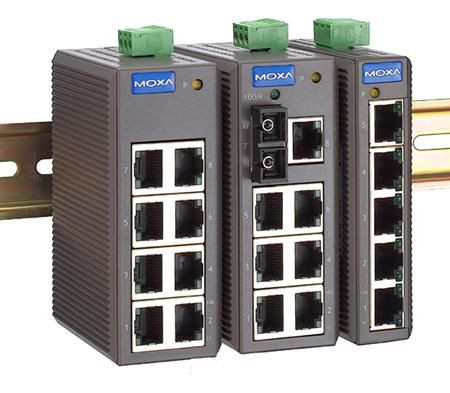

Moxa 41377 INDUSTRIAL UNMANAGED ETHERNETS 41377

The EDS-208/205 series of industrial Ethernet switches are entry-level industrial 8/5-port Ethernet switches that support IEEE802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. EDS-208/205 series switches are rated to operate at temperatures ranging from -10 to 60�C, and are rugged enough forany harsh industrial environment. EDS-208/205 series switches can be easily installed with DIN-Rail mounting as well as distribution boxes. The DIN-rail mounting ability, wide operating temperature, and the the IP30 case with LED indicators make the plug-and-play EDS-208/205 switches easy to use and reliable.

-High Performance Network Switching Technology
10/100BaseT(X) (RJ45) and 100BaseFX (Multi mode, SC/ST connector)
Broadcast Storm Protection
IEEE 802.3/802.3u/802.3x supports
Store and Forward switching process type
10/100M, Full/Half-Duplex, MDI/MDI-X auto-sensing
-Industrial Rugged Design
Operating temperature range from -10 to 60�C
Case designed meets IP30 protection standard
Power inputs support 24 VDC or 24 VAC
DIN-Rail mounting ability
-Recommeded Accessories
DR Series DIN-Rail 24 VDC power supplies

Design



Safety



UL508, UL60950-1


Management features



Switch type



Unmanaged


Operational conditions



Operating temperature (T-T)



-10 - 60 �C


Storage temperature (T-T)



-40 - 85 �C


Other features



Dimensions (WxDxH)



40 x 109 x 95 mm


Power requirements



12 - 45 VDC, 18 - 30 VAC (47 - 63 Hz)


Package dimensions



Depth (package,cm)



21 cm


Gross Weight (Package, kg)



0.4 kg


Height (package,cm)



7.5 cm


Width (package,cm)



15 cm


Performance



Mean time between failures (MTBF)



368000 Hour


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



0.30000000000000004 kg


Vendor information



Brand Name


Moxa


Warranty



2 Year(s)
