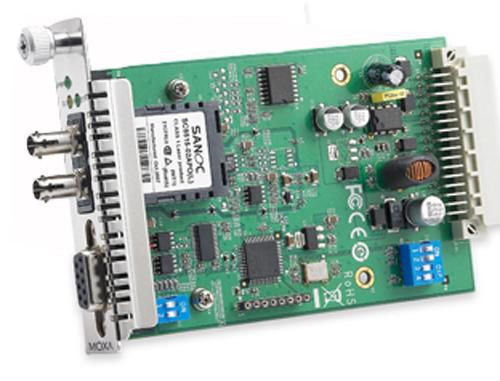

Moxa 43424 FIBER MEDIA CONVERTER. MULTI-M 43424

RS-232/422/485 to fiber slide-in modules for the NRack System
The TCF-142-RM series of serial-to-fiber converters are slide-in modules that work with the TRC-190 chassis. The modules convert from the RS-232, RS-422, or RS-485 signal to a fiber optic signal.

Features:Extend RS-232/422/485 transmission up to:- 40 km with single mode;
- 5 km with multi-mode.
1K or 150K ohm adjustable pull high/low resistor.
�Ring" and "Point-to-Point" transmission supported.

Certificates



Certification



EN, CE, FCC, IEC


Safety



UL/CUL


Indication



LED indicators



Yes


Material



Housing material



SPCC


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 60 �C


Storage temperature (T-T)



-20 - 75 �C


Package dimensions



Depth (package,cm)



22 cm


Gross Weight (Package, kg)



0.325 kg


Height (package,cm)



8 cm


Width (package,cm)



16 cm


Power



Input voltage



12 V


Power consumption



150 mA


Product dimensions



Net Weight (Product, kg)



0.225 kg


Technical details



Baud rate



921.6 Kbit/s


Electrostatic Discharge (ESD) protection



15 kV


Fiber optic connector



ST


Host interface



RS-232/422/485


Output interface



Fiber (ST)


Over current protection



Yes


RS-232 signals



GND, Rx, Tx


RS-422 signals



RxD+, RxD-, SGND, TxD+, TxD-


RS-485 signals



Data+, Data-, RxD+, RxD-, SGND, TxD+, TxD-


RX sensitivity



-20 dB


Surge protection voltage



2 kV


Transmission distance (multi-mode)



5 km


TX output



-5 dB


Wavelength



850 nm


Vendor information



Brand Name


Moxa


Warranty



2 Year(s)


Weight & dimensions



Dimensions (WxDxH)



86.8 x 136.5 x 21 mm
