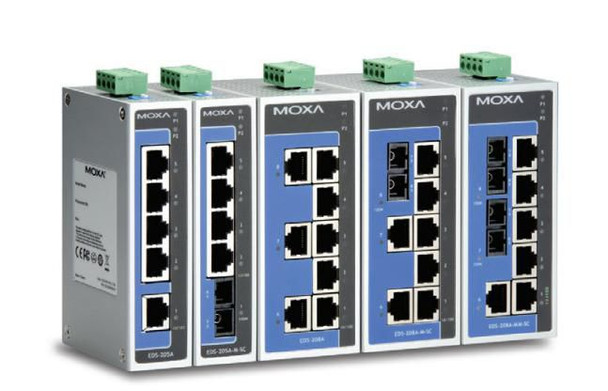

Moxa 44016 INDUSTRIAL UNMANAGED ETHERNETS 44016

- 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector)
- Redundant dual 12/24/48 VDC, 18 to 30 VAC power inputs
- IP30 aluminum housing
- Rugged hardware design well suited for hazardous locations (Class I Div. 2 /ATEX) and maritime environments (DNV/GL)
- 40 to 75�C operating temperature range (T models)

The EDS-205A/208A series are 5 and 8-port industrial Ethernet switches that support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X auto-sensing. The EDS-205A/208A switches provide 12/24/48 VDC (9.6 to 60 VDC), 18 to 30 VAC redundant power inputs that can be connected simultaneously to live AC/DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/GL) or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, TUV, UL, and CE standards.


The EDS-205A/208A switches are available with a standard operating temperature range from -10 to 60�C, or with a wide operating temperature range from -40 to 75�C. All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the EDS-205A/208A switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.

Data transmission



MAC address table



1000 entries


Maximum data transfer rate



0.1 Gbit/s


Supported data transfer rates



10/100 Mbps


Design



Certification



EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11


LED indicators



Y, Yes


Product colour



Grey


Safety



UL 508, UL 60950-1


Management features



Switch type



Unmanaged


Network



10G support



No


Auto MDI/MDI-X



Yes


Broadcast storm control



Yes


Flow control support



Yes


Full duplex



Yes


Networking standards



IEEE 802.3, IEEE 802.3u, IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-10 - 60 �C


Storage temperature (T-T)



-40 - 85 �C


Optical fiber



Fiber ethernet cabling technology



100BASE-FX


Fiber type



Multi-mode


Link budget



12 dB


RX sensitivity



-32 dB


Wavelength



1300 nm


Other features



Power LED



Yes


Package dimensions



Depth (package,cm)



21 cm


Gross Weight (Package, kg)



0.258 kg


Height (package,cm)



7.5 cm


Width (package,cm)



15 cm


Packaging data



Manual



Yes


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



5


Fiber optic connector



SC


Fiber ports quantity



1


Power



Input current



0.1 A


Redundant power supply (RPS) support



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



3 cm


Product Height



11.5 cm


Product Width



7 cm


Vendor information



Brand Name


Moxa


Warranty



2 Year(s)
