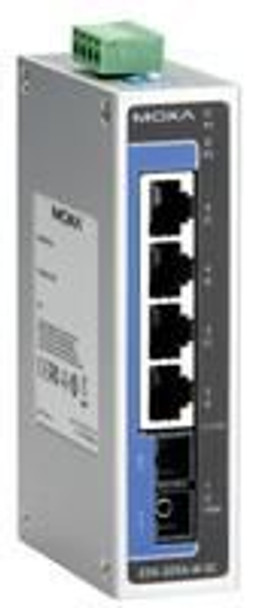

Moxa 44019 INDUSTRIAL UNMANAGED ETHERNETS 44019

The EDS-205A/208A series are 5 and 8-port industrial Ethernet switches that support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X auto-sensing. The EDS-205A/208A switches provide 12/24/48 VDC (9.6 to 60 VDC), 18 to 30 VAC redundant power inputs that can be connected simultaneously to live AC/DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/GL) or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, TUV, UL, and CE standards.

The EDS-205A/208A switches are available with a standard operating temperature range from -10 to 60°C, or with a wide operating temperature range from -40 to 75°C. All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the EDS-205A/208A switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.

- 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector)
- Redundant dual 12/24/48 VDC, 18 to 30 VAC power inputs
- IP30 aluminum housing
- Rugged hardware design well suited for hazardous locations (Class I Div. 2 /ATEX) and maritime environments (DNV/GL)
- -40 to 75°C operating temperature range (T models)

Data transmission



Maximum data transfer rate



0.1 Gbit/s


Supported data transfer rates



10/100 Mbps


Design



Certification



EN61000-4-2 (ESD); EN61000-4-3 (RS); EN61000-4-4 (EFT); EN61000-4-5 (Surge); EN61000-4-6 (CS); EN61000-4-8; EN61000-4-11.


Safety



UL508, EN60950-1


Management features



Switch type



Unmanaged


Network



10G support



No


Auto MDI/MDI-X



Yes


Broadcast storm control



Yes


Flow control support



Yes


Full duplex



Yes


Networking standards



IEEE 802.3u, IEEE 802.3x


Operational conditions



Operating temperature (T-T)



-40 - 75 °C


Storage temperature (T-T)



-40 - 85 °C


Other features



Connectivity LEDs



2


Connectivity technology



Wired


Dimensions (WxDxH)



30 x 115 x 70 mm


Electromagnetic emissions



FCC 15, CISPR


Mounting



Y


Mounting interface



DIN-Rail


Networking connector



SC


Non-operating relative humidity (non-condensing)



5 - 95 %


Shock



IEC 60068-2-27


Package dimensions



Depth (package,cm)



21.5 cm


Gross Weight (Package, kg)



0.258 kg


Height (package,cm)



7.5 cm


Width (package,cm)



15 cm


Performance



Mean time between failures (MTBF)



425000 Hour


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



5


Power



Input current



0.1 A


Input voltage



24 V


Redundant power supply (RPS) support



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



0.2 kg


Vendor information



Brand Name


Moxa


Warranty



2 Year(s)
