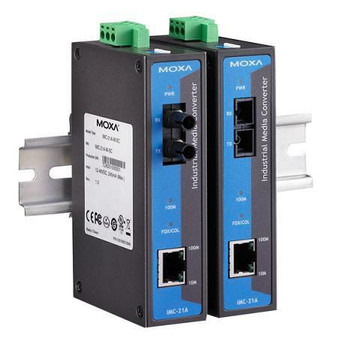

Moxa 45450 MEDIA CONVERTER 10/100MTx 45450

The IMC-21A industrial media converters are entry-level 10/100BaseT(X) to 100BaseFX media converters designed to provide reliable and stable operation in harsh industrial environments. The converters can operate reliably in temperatures ranging from -40 to 75�C. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The IMC-21A converters are easy to mount on a DIN-Rail or in distribution boxes.

- Multi-mode or single-mode, with SC or ST fiber connector
- Link Fault Pass-Through (LFP)
- -40 to 75�C operating temperature range (T models)
- DIP switches to select FDX/HDX/10/100/Auto/Force

Design



Certification



WEEE


Housing material



Metal


Internal



No


International Protection (IP) code



IP30


LED indicators



Y, Yes


Product colour



Black, Blue


Safety



UL 60950-1


Network



Converter input interface



100Base-TX, 10Base-T


Converter output interface



100Base-FX


Maximum data transfer rate



100 Mbit/s


Networking standards



IEEE 802.3, IEEE 802.3u, IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-40 - 75 �C


Storage temperature (T-T)



-40 - 75 �C


Other features



Dimensions (WxDxH)



30 x 79 x 125 mm


Package dimensions



Gross Weight (Package, kg)



1 kg


Performance



Fiber mode structure



Multi-mode


Link budget



12 dB


Maximum transfer distance



5000 m


Mean time between failures (MTBF)



353000 Hour


Sensitivity



-32 dBmW


Tx power (max)



-14 dBmW


Tx power (min)



-20 dBmW


Wavelength



1300 nm


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



1


Fiber optic connector



ST


Fiber ports quantity



1


Product dimensions



Net Weight (Product, kg)



0.9 kg


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Moxa


Warranty



2 Year(s)
