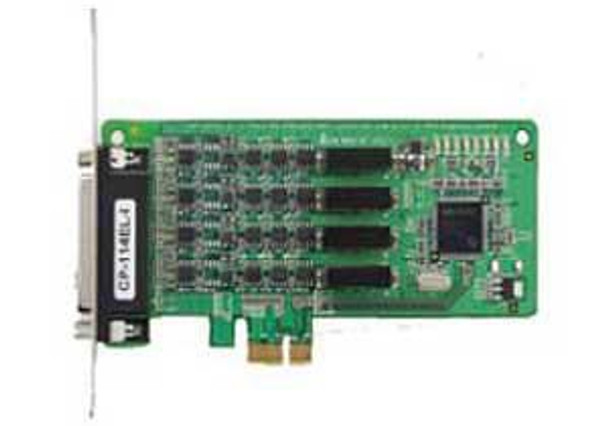

Moxa CP-114EL-I Interface Cards/Adapter CP-114EL-I

The CP-114EL and CP-114EL-I are smart, 4-port PCI Express boards designed for POS and ATM applications. The boards are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows and Linux. In addition, each of the boards' 4 RS-232/422/485 serial ports supports a super fast 921.6 Kbps baudrate.

The CP-114EL and CP-114EL-I provide full modem control signals to ensure compatibility with a wide range of serial peripherals, and their PCI Express"x1" classification allows the boards to be installed in any PCI Express slot.
- PCI Express x1 compliant
- 921.6 Kbps maximum baudrate for super fast data transmission
- 128-byte FIFO and on-chip H/W, S/W flow control
- Low profile form factor fits small-sized PCs
- Drivers provided for Windows (2000, XP/2003/Vista/2008 x86/x64),Linux 2.4, Linux 2.6 (x86/x64), QNX 6, Windows XP Embedded, SCO OpenServer 5/6, UnixWare 7
- 15 KV ESD protection on the board.

Design



Certification



CE, FCC, ROHS


Product colour



Green


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 55 �C


Storage relative humidity (H-H)



-20 - 85 %


Other features



Compatible operating systems



Windows 2000, XP/2003/Vista/2008 x86/x64, XP Linux 2.4, Linux 2.6 (x86/x64) QNX 6 SCO OpenServer 5/6 UnixWare 7


Connectivity technology



Wired


Data transfer rate



0.9 Mbit/s


Form factor



LP


Mac compatibility



No


Operating temperature (T-T)



32 - 131 �F


Platform



PC


Ports quantity



4


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Ports & interfaces



Connector(s)



4x DB44 FM (RS-232/422/485)


Host interface



PCIe


Serial ports quantity



4


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



13.69 cm


Product Width



6.72 cm


Vendor information



Brand Name


Moxa


Warranty



1 Year(s)
