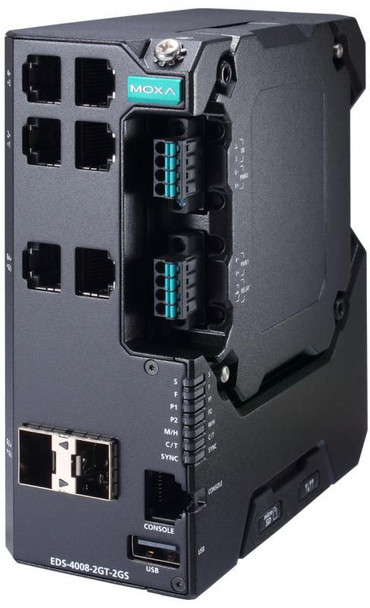

Moxa EDS-4008-2GT-2GS-HV-T EDS-4008-2GT-2GS-HV-T EDS-4008-2GT-2GS-HV-T

Managed Gigabit Ethernet switch with 4*10/100BaseT(X) ports, 2*10/100/1000BaseT(X), 2*100/1000BaseSFP ports, single power supply 110/220 VAC/VDC, -40 to 75�C operating temperature

Data transmission



Jumbo frames



9.216


Jumbo frames support



Yes


MAC address table



16000 entries


Packet buffer memory



1 MB


Design



DIN rail mounting



Yes


Housing material



Metal


International Protection (IP) code



IP40


LED indicators



Y, Yes


Product colour



Black, Green


Reset button



Yes


Wall mountable



Yes


Management features



MIB support



P-BRIDGE MIB, Q-BRIDGE MIB, IEEE8021-SPANNING-TREE-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, LLDP-EXT-DOT1-MIB, LLDP-EXT-DOT3-MIB, SNMPv2-MIB, RMON MIB, Groups 1, 2, 3, 9


Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


Network



Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Broadcast storm control



Yes


Copper ethernet cabling technology



10BASE-T, 100BASE-FX, 100BASE-T


Ethernet LAN data rates



10, 100, 1000


Flow control support



Yes


Full duplex



Yes


Half duplex



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Number of VLANs



256


Policy-based routing



Yes


Port mirroring



Yes


Rate limiting



Yes


Spanning tree protocol



Yes


Virtual LAN features



Tagged VLAN


VLAN support



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-10 - 60 �C


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Depth (package,cm)



20 cm


Gross Weight (Package, kg)



1.022 kg


Height (package,cm)



7 cm


Width (package,cm)



18 cm


Packaging data



Quick start guide



Yes


Performance



Mean time between failures (MTBF)



505936 Hour


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



6


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Console port



RS-232/RJ-45


Fast Ethernet (copper) ports quantity



4


Gigabit Ethernet (copper) ports quantity



2


Power connector



Terminal block (4-pin)


SFP module slots quantity



2


USB Type-A ports quantity



1


Power



AC input frequency



50/60 Hz


AC input voltage



110 - 220 V


DC input voltage



88 - 300 V


Input current



0.3 A


Power consumption (max)



11.17 Watt


Power protection features



Overload, Reverse polarity


Power source



AC/DC


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



0.795 kg


Product Depth



14 cm


Product Height



5.5 cm


Product Width



12.25 cm


Protocols



GARP VLAN Registration Protocol (GVRP)



Yes


IPv4 & IPv6 features



ICMPv6, IPv6 SNMP, IPv6 TFTP, IPv6 Telnet


Security



Access Control List (ACL)



Yes


Authentication type



IEEE 802.1x, RADIUS, TACACS+


DHCP features



DHCP client, DHCP server


IGMP entries



512


IGMP snooping



Yes


Password protection



Yes


Queue scheduling algorithms



Priority queuing (PQ)


Security algorithms



HTTPS, SMTP-AUTH, SSH, SSL/TLS, WPA-RADIUS


Sustainability



Sustainability certificates



CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), Low Voltage Directive (LVD), cUL


Sustainability compliance



Yes


Technical details



Warranty period



5 year(s)


Vendor information



Brand Name


Moxa


Homepage



https://shop.thiim.com/TradePoint141/tradepoint/b2c/ui/catalog/itemview.aspx?key=52787


Warranty



5 Year(s)
