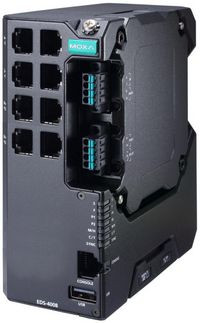

Moxa EDS-4008-2MSC-LV EDS-4008-2MSC-LV EDS-4008-2MSC-LV

Managed Ethernet switch with 6*10/100BaseT(X) ports, 2*100BaseFX multi-mode ports with SC connectors, dual power supply 12/24/48 VDC, -10 to 60�C operating temperature

Data transmission



Jumbo frames



9.216


Jumbo frames support



Yes


MAC address table



16000 entries


Packet buffer memory



1 MB


Design



DIN rail mounting



Yes


Housing material



Metal


International Protection (IP) code



IP40


LED indicators



Y, Yes


Product colour



Black, Green


Reset button



Yes


Wall mountable



Yes


Management features



MIB support



P-BRIDGE MIB, Q-BRIDGE MIB, IEEE8021-SPANNING-TREE-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, LLDP-EXT-DOT1-MIB, LLDP-EXT-DOT3-MIB, SNMPv2-MIB, RMON MIB Groups 1, 2, 3, 9


Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


Network



Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Broadcast storm control



Yes


Copper ethernet cabling technology



10BASE-TX, 100BASE-FX, 100BASE-TX


Ethernet LAN data rates



10, 100


Flow control support



Yes


Full duplex



Yes


Half duplex



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Number of VLANs



256


Policy-based routing



Yes


Port mirroring



Yes


Rate limiting



Yes


Spanning tree protocol



Yes


Virtual LAN features



Tagged VLAN


VLAN support



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-10 - 60 �C


Storage temperature (T-T)



-40 - 85 �C


Optical fiber



Fiber ethernet cabling technology



100BASE-FX


Fiber type



Multi-mode


Package dimensions



Depth (package,cm)



20 cm


Gross Weight (Package, kg)



1.09 kg


Height (package,cm)



7 cm


Width (package,cm)



18 cm


Packaging data



Quick start guide



Yes


Performance



Mean time between failures (MTBF)



1014299 Hour


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



6


Basic switching RJ-45 Ethernet ports type



Fast Ethernet (10/100)


Console port



RS-232/RJ-45


Fast Ethernet (copper) ports quantity



6


Fiber optic connector



SC


Fiber ports quantity



2


Power connector



Terminal block (4-pin)


USB Type-A ports quantity



1


Power



DC input voltage



12 - 48 V


Input current



0.7 A


Power consumption (max)



8.45 Watt


Power protection features



Overload, Reverse polarity


Power source



DC


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



0.886 kg


Product Depth



14 cm


Product Height



5.5 cm


Product Width



12 cm


Protocols



GARP VLAN Registration Protocol (GVRP)



Yes


IPv4 & IPv6 features



ICMPv6, IPv6 SNMP, IPv6 TFTP, IPv6 Telnet


Security



Access Control List (ACL)



Yes


Authentication type



IEEE 802.1x, RADIUS, TACACS+


DHCP features



DHCP client, DHCP server


IGMP entries



512


IGMP snooping



Yes


Password protection



Yes


Queue scheduling algorithms



Priority queuing (PQ)


Security algorithms



HTTPS, SMTP-AUTH, SSH, SSL/TLS


Sustainability



Sustainability certificates



CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), Low Voltage Directive (LVD), cUL


Sustainability compliance



Yes


Technical details



Warranty period



5 year(s)
