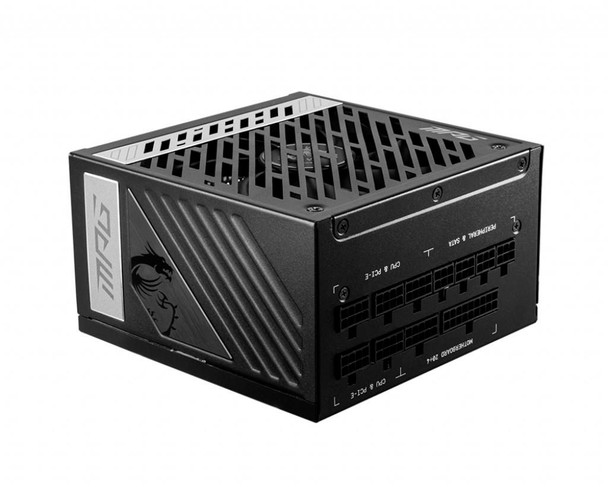

MSI 306-7ZP5C11-CE0 Mpg A1000G Psu '1000W. 80 306-7ZP5C11-CE0

POWERED BY MSI
Create and establish the most powerful setup with Powered by MSI products,
including PC case, motherboard, liquid cooler, graphics card, and power supply unit.

80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system�s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

0% RPM MODE
The fan 0 RPM mode can stop the fan�s operation when TDP is below 40% to let you enjoy gaming in silence.

100% JAPANESE 105�C CAPACITORS
Aiming for unwavering product quality and performance stability, the MPG A1000G comes with 100% Japanese 105� C capacitors and solid capacitors.

USE WHAT YOU NEED
The MPG A1000G's fully modular design means that only the connectors required by the build need to be used, significantly reducing cable clutter and simplifying the system�s overall build.

SINGLE-RAILED
The MPG A1000G's single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, the MPG A1000G's 5 CPU & PCI-E slots are more than plenty.

COMPACT SIZING
Smaller than typical PSUs on the market, the new ATX series PSU�s compact sizing makes it an excellent fit for more PC cases.

Design



Fan diameter



14 cm


Number of fans



1 fan(s)


Product colour



Black


Logistics data



Harmonized System (HS) code



84733020


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Performance



80 PLUS certification



80 PLUS Gold


Power supply unit (PSU) form factor



ATX


Purpose



All-in-One PC


Supported motherboard form factors



ATX


Ports & interfaces



EPS power connector (4+4 pin)



Yes


Motherboard power connector



20+4 pin ATX


Number of SATA power connectors



3


PCI Express power connectors (6+2 pin)



2


Peripheral (Molex) power connectors (4-pin)



4


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Combined power (-12V)



3.6 Watt


Combined power (+12V)



1000 Watt


Combined power (+5V)



120 Watt


Combined power (+5Vsb)



15 Watt


Efficiency



90 %


Input current



13.0/6.5 A


Max output current (-12V)



0.3 A


Max output current (+12V)



83.3 A


Max output current (+5V)



22 A


Max output current (+5Vsb)



3 A


Power protection features



Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage


Total power



1000 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



8.6 cm


Product Height



15 cm


Product Width



15 cm


Vendor information



Brand Name


MSI


Warranty



1 Year(s)
