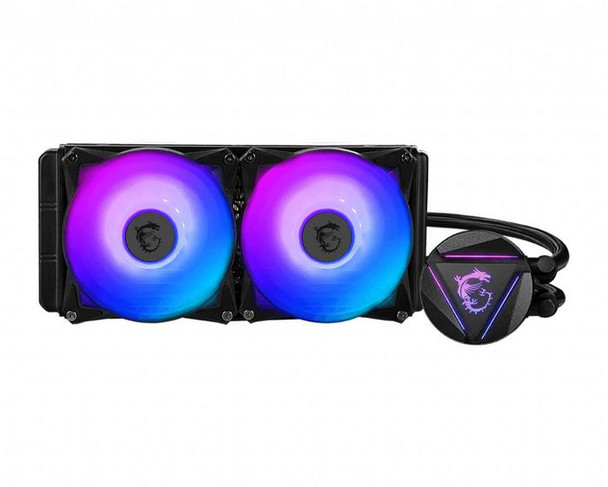

MSI 306-7ZW1D11-813 Mag Coreliquid 280R Liquid 306-7ZW1D11-813

CONQUER THE BATTLEFIELD
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

The newly introduced MAG CORELIQUID has everything you're looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.

ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.

RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.

PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.

HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.

EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.

DIY 2.0 � INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

MORE SILENCE THAN EXPECTED
MAG CORELIQUID 280R's noise level is significantly lower than that of competitor's by 14%.

EXTENSIVE COMPATIBILITY
Robust yet built for flexibility, MAG CORELIQUID has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.

Design



Illumination colour



Multi


Illumination LED



Yes


Number of fans



2 fan(s)


Product colour



Black


Radiator material



Aluminium


Logistics data



Harmonized System (HS) code



84733080


Package dimensions



Gross Weight (Package, kg)



1.85 kg


Performance



Fan bearing technology



Double ball bearing


Fan noise level (max)



33.28 dB


Fan noise level (min)



14.8 dB


Fan speed (max)



1800 RPM


Fan speed (min)



500 RPM


Fan static pressure



2.29 mmH2O


Minimum airflow (imperial)



84.36 cfm


Pulse-width modulation (PWM) support



Yes


Pump motor speed



4200 RPM


Suitable location



Computer case


Supported processor sockets



LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+


Type



All-in-one liquid cooler


Power



Fan current



0.19 A


Fan power consumption



2.28 Watt


Fan voltage



12 V


Pump current



0.34 mA


Pump power consumption



4.08 Watt


Pump voltage



12 V


Product dimensions



Net Weight (Product, kg)



1.42 kg


Vendor information



Brand Name


MSI


Warranty



1 Year(s)


Weight & dimensions



Fan dimensions (W x D x H)



140 x 140 x 25 mm


Radiator depth



14 cm


Radiator height



2.7 cm


Radiator width



31.2 cm


Waterblock depth



6.682 cm


Waterblock height



4.858 cm


Waterblock width



8.057 cm
