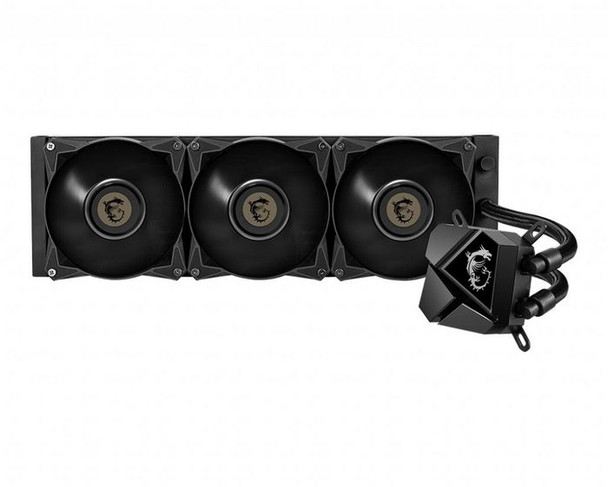

MSI 306-7ZW2P31-813 Mag Coreliquid P360 Liquid 306-7ZW2P31-813

REBELLIOUS AND DISCREET
The MAG CORELIQUID P Series liquid coolers' water block is not the typical design you frequently see in the market today. It is modest and discreet, but with great quality. It is split into four pieces of unique diamond-cut areas, with three constructed in piano black and the last one featuring our proud MSI logo emblem.

LGA 1700 COMPATIBLE
The MAG CORELIQUID P Series liquid cooler provides out of box support for LGA 1700.

RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.

HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.

PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.

EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.

EXTENSIVE COMPATIBILITY
Stylish yet built for flexibility, the MAG CORELIQUID P Series has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.

Design



Material



Aluminium


Number of fans



3 fan(s)


Product colour



Black


Logistics data



Harmonized System (HS) code



84733080


Other features



Noise level



14.3 dB


Package dimensions



Gross Weight (Package, kg)



2.26 kg


Performance



Fan bearing technology



Double ball bearing


Fan noise level (max)



34.3 dB


Fan noise level (min)



14.3 dB


Fan speed (max)



2000 RPM


Fan speed (min)



500 RPM


Fan static pressure



2.39 mmH2O


Fan's mean time to failure (MTTF)



70000 Hour


Maximum airflow



78.73 cfm


Pulse-width modulation (PWM) support



Yes


Pump motor speed



4200 RPM


Pump's mean time to failure (MTTF)



100000 Hour


Suitable location



Processor


Supported processor sockets



LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+


Type



All-in-one liquid cooler


Power



Fan current



0.15 A


Fan power consumption



1.8 Watt


Fan voltage



12 V


Pump current



0.34 mA


Pump power consumption



4.08 Watt


Pump voltage



12 V


Product dimensions



Net Weight (Product, kg)



1.74 kg


Vendor information



Brand Name


MSI


Warranty



1 Year(s)


Weight & dimensions



Fan dimensions (W x D x H)



120 x 120 x 25 mm


Radiator depth



2.7 cm


Radiator height



12 cm


Radiator width



39.6 cm


Tube length



40 cm


Waterblock depth



5.2 cm


Waterblock height



7.05 cm


Waterblock width



7.05 cm
