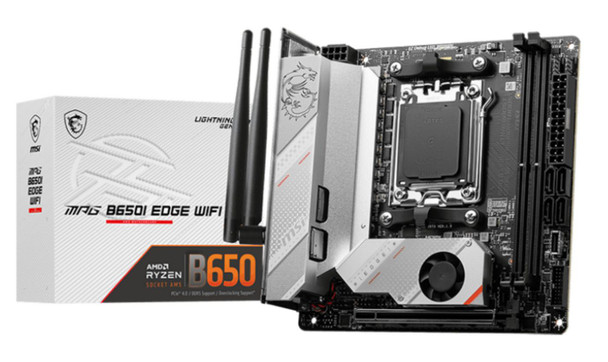

MSI 7D73-001R Mpg B650I Edge Wifi 7D73-001R

BE AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

REINFORCED, HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.

M.2 Shield Frozr
With double ball bearings fan to keeps M.2 SSDs safe while preventing throttling, making them run faster.

7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.

10-Layer Server Grade PCB
10-layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

Expansion slots



Number of M.2 (M) slots



2


PCI Express x16 (Gen 3.x) slots



1


Features



Audio chip



Realtek ALC4080


Audio output channels



7.1 channels


Component for



PC


Motherboard chipset



AMD B650


Motherboard chipset family



AMD


Motherboard form factor



mini ATX


PC health monitoring



Fan


Windows operating systems supported



Windows 10 x64


Internal I/O



ATX Power connector (24-pin)



Yes


Chassis intrusion connector



Yes


CPU fan connector



Yes


Front panel audio connector



Yes


Front panel connector



Yes


USB 2.0 connectors



2


USB 3.2 Gen 1 (3.1 Gen 1) connectors



2


Memory



Maximum internal memory



64 GB


Non-ECC



Yes


Number of memory slots



2


Supported memory clock speeds



4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400


Supported memory types



DDR5-SDRAM


Network



Bluetooth



Yes


Bluetooth version



5.2


Ethernet interface type



2.5 Gigabit Ethernet


Ethernet LAN



Yes


LAN controller



Realtek RTL8125B


Top Wi-Fi standard



Wi-Fi 6E (802.11ax)


Wi-Fi



Yes


Wi-Fi standards



Wi-Fi 6E (802.11ax)


Package dimensions



Gross Weight (Package, kg)



1.4 kg


Processor



Compatible processor series



AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen


Processor manufacturer



AMD


Processor socket



Socket AM5


Supported processor sockets



Socket AM5


Product dimensions



Net Weight (Product, kg)



1.08 kg


Product Depth



17 cm


Product Width



17 cm


Rear panel I/O ports



Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


HDMI version



2.1


Headphone outputs



1


Line-in



Yes


Microphone in



Yes


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



3


USB 3.2 Gen 2x2 Type-C ports quantity



1


Storage controllers



RAID levels



0, 1, 10


Supported storage drive interfaces



M.2, SATA


Vendor information



Brand Name


MSI


Warranty



1 Year(s)
