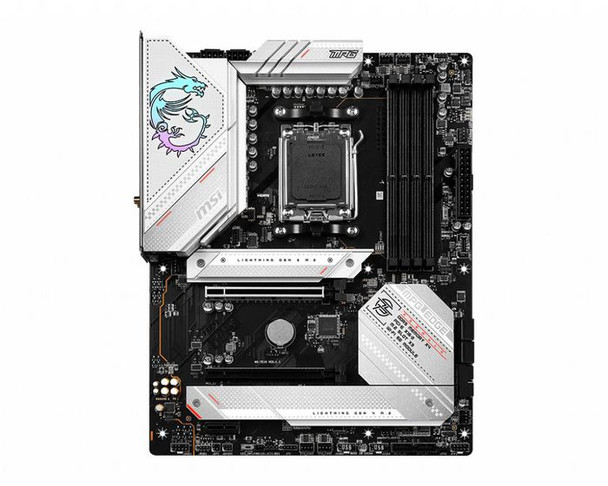

MSI 7E10-001R Mpg B650 Edge Wifi 7E10-001R

BE AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr
M.2 thermal accessory. Keeps M.2 SSDss safe while preventing throttling, making them run faster.

Pump Fan Support
Control watercooling pump speeds for best flow and noise control.

6-Layer Server Grade PCB
6-layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED, HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Expansion slots



Number of M.2 (M) slots



3


PCI Express x16 (Gen 3.x) slots



1


Features



Audio chip



Realtek ALC4080


Audio output channels



7.1 channels


Component for



PC


Motherboard chipset



AMD B650


Motherboard chipset family



AMD


Motherboard form factor



ATX


PC health monitoring



Fan


Windows operating systems supported



Windows 11 x64


Internal I/O



ATX Power connector (24-pin)



Yes


Chassis intrusion connector



Yes


CPU fan connector



Yes


Front panel audio connector



Yes


Front panel connector



Yes


USB 2.0 connectors



4


USB 3.2 Gen 1 (3.1 Gen 1) connectors



2


Memory



Maximum internal memory



128 GB


Number of memory slots



4


Supported memory clock speeds



4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600


Supported memory types



DDR5-SDRAM


Network



Bluetooth



Yes


Bluetooth version



5.2


Ethernet interface type



2.5 Gigabit Ethernet


Ethernet LAN



Yes


LAN controller



Realtek RTL8125-BG


Top Wi-Fi standard



Wi-Fi 6E (802.11ax)


Wi-Fi



Yes


Wi-Fi standards



802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)


Package dimensions



Gross Weight (Package, kg)



2.65 kg


Processor



Compatible processor series



AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen


Processor manufacturer



AMD


Processor socket



Socket AM5


Supported processor sockets



Socket AM5


Product dimensions



Net Weight (Product, kg)



2.04 kg


Product Depth



24.38 cm


Product Width



30.48 cm


Rear panel I/O ports



Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


HDMI version



2.1


Headphone outputs



1


Line-in



Yes


Microphone in



Yes


USB 2.0 ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



3


USB 3.2 Gen 2x2 Type-C ports quantity



1


Storage controllers



RAID levels



0, 1, 10


Supported storage drive interfaces



M.2, SATA


Vendor information



Brand Name


MSI


Warranty



1 Year(s)
