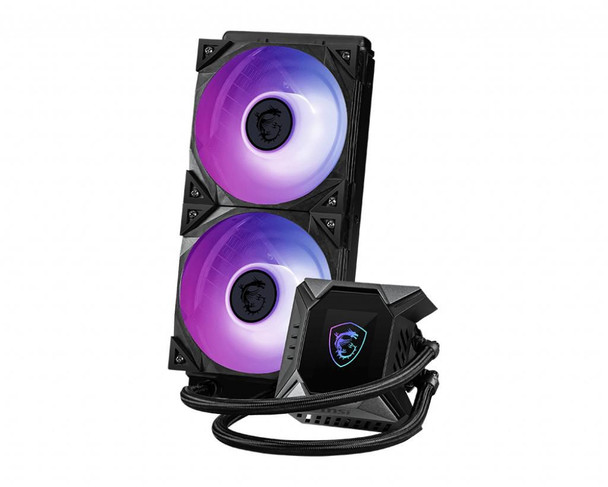

MSI 9S6-6A0311-038 Mpg Coreliquid K240 V2 Liquid 9S6-6A0311-038

msi mpg coreliquid
Mighty with a purpose, the MPG CORELIQUID K Series descends. The MPG CORELIQUID K Series washes away your traditional image of a liquid cooler and blows it into a whole new reality. Stacked with powerful features and sculpted with eye-catching appearances, the MPG CORELIQUID K Series is here to set the benchmark, one game at a time.

UNRIVALED RAPID COOLING
MSI's exclusive TORX FAN 4.0 provides concentrated airflow to the radiator for the most rapid heat dissipation.

TORX FAN 4.0
Inspired by teamwork, MSI�s exclusive TORX FAN 4.0 has two fan blades working as one with an outer ring design.

CONCENTRATED COOLING PERFORMANCE
A 60mm TORX FAN 3.0 is placed within the water block to help dissipate heat for the M.2 SSD, CPU VRMs, and surrounding components for improved performance.

2.4� CUSTOMIZABLE LCD DISPLAY
The MPG CORELIQUID K Series comes equipped with a 2.4� LCD capable of displaying a wide range of hardware system information and customizable graphics.

EVAPORATION PROOF TUBING
MPG CORELIQUID K Series� tubing is constructed with three layers of netted plastic with a reinforced mesh exterior.

LGA 1700 COMPATIBLE
The MPG CORELIQUID K Series liquid cooler provides out of box support for LGA 1700.

CONTROL IN YOUR HANDS
Through MSI�s exclusive software, you can independently control all of the fans� speed according to your preference for cooling or for silence.

THE MOST COMPLETE USER EXPERIENCE
The G.I. (Gaming Intelligence) Mode intelligently detects the temperature of the system. The radiator fans, water block fan, and pump can all have their speed adjusted according to different usage situations.

TOTAL CONTROL IN YOUR HANDS
Everything ranging from MPG CORELIQUID K Series� fan speed to the ARGB lighting to the LCD display can be adjusted through the MSI Center.

EXTENSIVE COMPATIBILITY
Stunning yet built for flexibility, the MPG CORELIQUID K Series has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
Intel: LGA 1150, 1151, 1155, 1156, LGA1200, 1700, LGA1366, LGA2011, LGA2011-3, LGA2066
AMD: AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2

Design



Illumination LED



Yes


Material



Mesh, Rubber


Number of fans



2 fan(s)


Number of LEDs



1


Product colour



Black


Radiator material



Aluminum


Package dimensions



Gross Weight (Package, kg)



1.95 kg


Performance



Bearing type



Ball bearing


Fan 2 maximum air pressure



4.29 mmH2O


Fan 2 maximum airflow



77.4 cfm


Fan 2 noise level (high speed)



39.9 dB


Fan 2 rotational speed (max)



2500 RPM


Fan bearing technology



Double ball bearing


Fan diameter



12 cm


Fan diameter 2



12 cm


Fan noise level (max)



39.9 dB


Fan speed (max)



2500 RPM


Maximum air pressure



4.29 mmH2O


Maximum airflow



77.4 cfm


Noise level (high speed)



39.9 dB


Pulse-width modulation (PWM) support



Yes


Pump connector



4-pin


Pump motor speed



2800 RPM


Pump motor speed (max)



3100 RPM


Pump motor speed (min)



2500 RPM


Pump noise level



20 dB


Rotational speed (max)



2500 RPM


Suitable location



Computer case


Supported processor sockets



LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+


Type



Cooling set


Power



Fan current



0.28 A


Fan power consumption



3.36 Watt


Pump current



0.33 mA


Pump power consumption



4 Watt


Pump voltage



12 V


Product dimensions



Net Weight (Product, kg)



1.5 kg


Vendor information



Brand Name


MSI


Warranty



1 Year(s)


Weight & dimensions



Fan dimensions (W x D x H)



120 x 120 x 25 mm


Pump depth



9.4 cm


Pump height



8.336 cm


Pump width



9.466 cm


Radiator depth



40.6 cm


Radiator height



14.6 cm


Radiator width



24.3 cm
