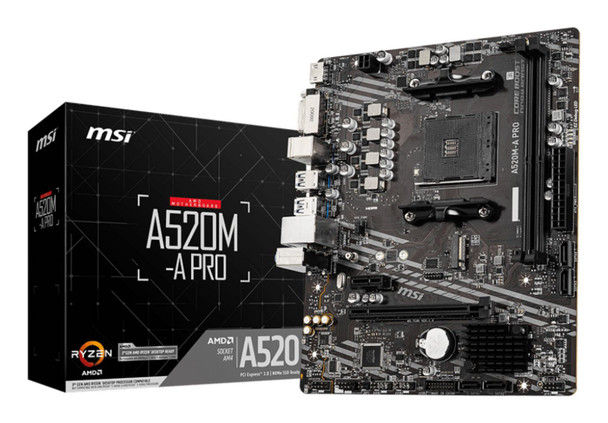

MSI A520M-A PRO Motherboard Amd A520 Socket A520M-A PRO

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

FULLY FAN CONTROL
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

EZ DEBUG LED
Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.

DOUBLE ESD PROTECTION
ULTIMATE MOTHERBOARD PROTECTION
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

USB 3.2 GEN 1
Transfer lots of data, music and movies over USB easier. USB 3.2 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 devices.

PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.

A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. Compared to A320 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for A520 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability.

CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

Expansion slots



PCI Express x1 (Gen 3.x) slots



1


PCI Express x16 (Gen 3.x) slots



1


Features



Audio chip



Realtek ALC892


Audio output channels



7.1 channels


Component for



PC


Motherboard chipset



AMD A520


Motherboard chipset family



AMD


Motherboard form factor



micro ATX


Number of mounting holes



8


Graphics



Maximum resolution



4096 x 2160 Pixels


Number of displays supported



2


Internal I/O



ATX Power connector (24-pin)



Yes


Chassis intrusion connector



Yes


CPU fan connector



Yes


Front panel audio connector



Yes


Front panel connector



Yes


Number of chassis fan connectors



2


Number of SATA III connectors



4


USB 2.0 connectors



2


USB 3.2 Gen 1 (3.1 Gen 1) connectors



1


Logistics data



Harmonized System (HS) code



84733020


Memory



ECC



Yes


Maximum internal memory



64 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



2


Supported memory clock speeds



1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600


Supported memory types



DDR4-SDRAM


Unbuffered memory



Yes


Network



Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


LAN controller



Realtek RTL8111H


Wi-Fi



No


Other features



Weight



698 g


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Processor



Compatible processor series



3rd Generation AMD Ryzen� 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen� 7, 3rd Generation AMD Ryzen� 9


Maximum number of SMP processors



1


Processor manufacturer



AMD


Processor socket



Socket AM4


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



20 cm


Product Height



6 cm


Product Width



23.6 cm


Rear panel I/O ports



DVI-D ports quantity



1


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


Headphone outputs



1


Microphone in



Yes


USB 2.0 ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


Storage controllers



Number of HDDs supported



5


RAID levels



0, 1, 10


Supported storage drive interfaces



PCI Express 3.0, SATA


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


MSI


Warranty



1 Year(s)
