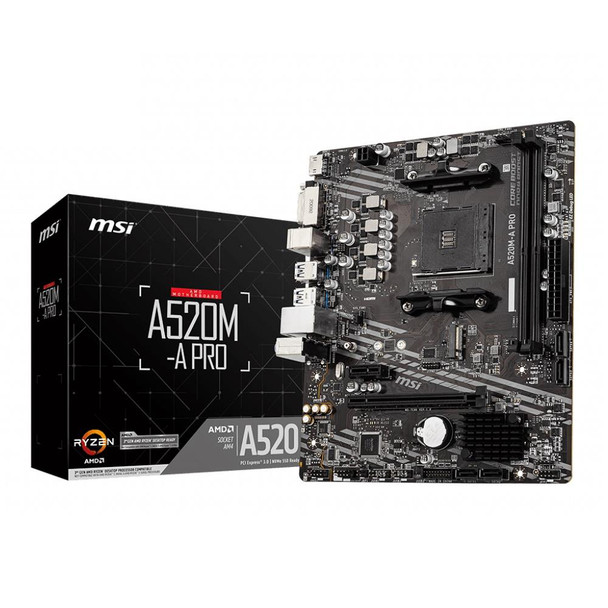

Msi A520M-A PRO Socket Am4/A520/Ddr4/S-Ata 600/Micro Atx A520M-A PRO

MSI AM4 A520M-A PRO M-ATX
SKU: 119294
Product Group:Motherboards
Manufacturer:MSI
SKU:119294
Product Name:MSI A520M-A PRO (Socket AM4/A520/DDR4/S-ATA 600/Micro ATX)
Web Address:uk.msi.com
Model Number:A520M-A PRO
EAN:4719072749927
UPC:824142224007
Package Type:Retail
Warranty:3 Years
Chipset:AMD A520
CPU Interface:Socket AM4
CPU Support:https://www.msi.com/Motherboard/support/A520M-A-PRO#support-cpu
RAM Technology:DDR4 (Dual Channel)
RAM Slots:2 x 288-pin
RAM Speeds:Up to DDR4 4600+ (O.C.)
Max. Memory Support:64GB
PCI Express 3.0 x16:1
PCI Express 3.0 x1:1
S-ATA 6Gb/s Port(s):4
RAID:Raid 0/1/10
M.2 Socket(s):1
On-Board LAN:1 x Realtek RTL8111H Gigabit LAN controller
On-Board Audio:Realtek ALC892 Codec
On-Board Video:AMD processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port:1
Back USB 2.0 Port(s):2
Back USB 3.2 Port(s) Type-A Gen 1:4
Back DVI-D Port(s):1
Back HDMI Port(s):1
Back LAN Port(s):1
Back Audio Jack(s):3
24-pin ATX Power:1
8-pin ATX Power:1
USB 2.0 Header(s):2
USB 3.2 Header(s) Gen 1:1
Front Panel Audio Connector:1
TPM Header(s):1
Form Factor:Micro ATX
Product Width:200mm
Product Length:236mm
Package Width:26cm
Package Length:27cm
Package Height:5.5cm
Gross Weight:1.66Kg
Special Features:Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe
based SSDs.
Core Boost: With premium layout and digital power design to support more
cores and provide better performance.
DDR4 Boost: Advanced technology to deliver pure data signals for the
best performance and stability.
2oz Thickened Copper PCB: An enhanced PCB design improves heat
dissipation and performance reliability.
Audio Boost: Reward your ears with studio grade sound quality.
Dragon Centre: A brand new software which integrates all MSI exclusive tools
with user friendly user interface

Package Contents:Motherboard
MSI Case Bage
Quick Installation
2 x SATA Cables
IO Shield
Support Disk
