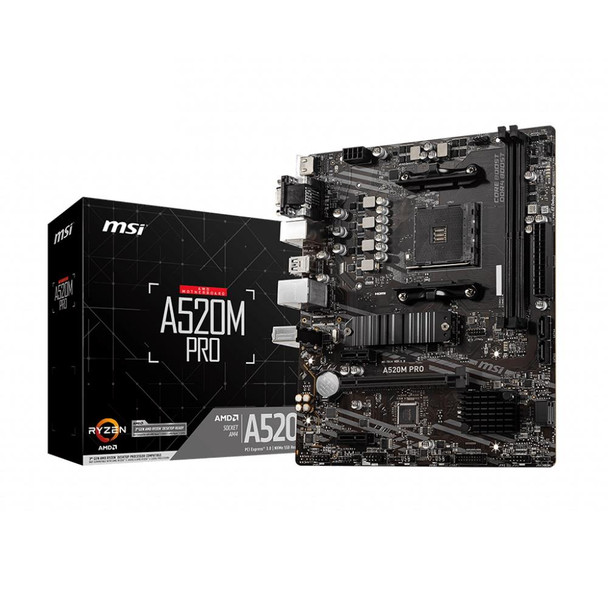

Msi A520M PRO Socket Am4/A520/Ddr4/S-Ata 600/Micro Atx A520M PRO

Product Group:

Motherboards



Manufacturer:

MSI



SKU:
9293


Product Specifications



Product Name:

MSI A520M PRO (Socket AM4/A520/DDR4/S-ATA 600/Micro ATX)



Web Address:

uk.msi.com



Model Number:

A520M PRO



EAN:

4719072755492



UPC:

824142226063



Package Type:

Retail



Warranty:

3 Years



Chipset:

AMD A520



CPU Interface:

Socket AM4



CPU Support:

https://www.msi.com/Motherboard/support/A520M-PRO#support-cpu



RAM Technology:

DDR4 (Dual Channel)



RAM Slots:

2 x 288-pin



RAM Speeds:

Up to DDR4 4600+ (O.C.)



Max. Memory Support:

64GB



PCI Express 3.0 x16:

1



PCI Express 3.0 x1:

2



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/10



M.2 Socket(s):

1



On-Board LAN:

1 x Realtek RTL8111H LAN controller



On-Board Audio:

Realtek ALC892 Codec



On-Board Video:

Processor with integrated graphics is required



Back PS/2 Keyboard/Mouse Port:

1



Back USB 2.0 Port(s):

2



Back USB 3.2 Port(s) Type-A Gen 1:

4



Back VGA Port(s):

1



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

3



24-pin ATX Power:

1



8-pin ATX Power:

1



USB 2.0 Header(s):

2



USB 3.2 Header(s) Gen 1:

1



COM Port Header(s):

1



TPM Header(s):

1



Internal Other Port(s):

1 x 4-pin RGB LED Connector
1 x 3-pin RAINBOW LED Connector




Form Factor:

Micro ATX



Product Width:

210mm



Product Length:

244mm



Package Width:

26cm



Package Length:

26.5cm



Package Height:

5.5cm



Gross Weight:

0.79Kg



Special Features:

Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Core Boost: With premium layout and digital power design to support more cores and provide better performance.
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
Audio Boost: Reward your ears with studio grade sound quality.
Dragon Centre: A brand new software which integrates all MSI exclusive tools with user friendly user interface.




Package Contents:

B550M PRO/ A520M PRO
2 x SATA 6G Cables
1 x M.2 screws (3 pcs./pack)
Product Registration Card
IO Shield
Case Badge
Support Disk
Quick Installation Guide
