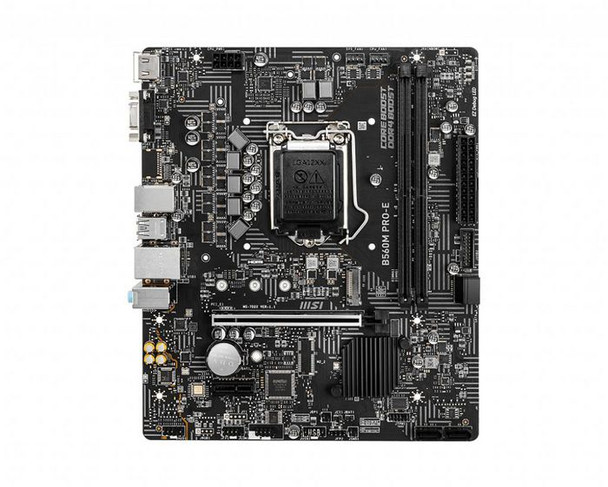

MSI B560M PRO-E Motherboard Intel B560 Lga B560M PRO-E

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

LOW LATENCY GAMING LAN POWERED BY INTEL�
Stay connected with Intel� LAN, optimized for stable internet throughput ideal for championship level online plays.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

Expansion slots



Number of M.2 (M) slots



1


PCI Express x1 (Gen 3.x) slots



2


PCI Express x16 slots



1


Features



Audio chip



Realtek ALC897


Audio output channels



7.1 channels


Component for



PC


Motherboard chipset



Intel B560


Motherboard chipset family



Intel


Motherboard form factor



micro ATX


Number of mounting holes



6


Power source type



ATX


Windows operating systems supported



Windows 10 x64


Graphics



DirectX version



12.0


Maximum resolution



4096 x 2304 Pixels


Number of displays supported



3


On-board graphics card



Yes


Parallel processing technology support



Not supported


Internal I/O



12V power connector



Yes


ATX Power connector (24-pin)



Yes


Chassis intrusion connector



Yes


CPU fan connector



Yes


EPS power connector (8-pin)



Yes


Front panel audio connector



Yes


Number of EATX power connectors



1


Number of SATA III connectors



6


Serial port headers



1


Total number of SATA connectors



6


TPM connector



Yes


USB 2.0 connectors



2


USB 3.2 Gen 1 (3.1 Gen 1) connectors



1


Memory



Maximum internal memory



64 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



2


Supported memory clock speeds



2133, 2666, 2933, 3200


Supported memory types



DDR4-SDRAM


Unbuffered memory



Yes


Network



Ethernet interface type



2.5 Gigabit Ethernet


Ethernet LAN



Yes


LAN controller



Realtek RTL8125B


Wi-Fi



No


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Packaging content



Cables included



SATA


Drivers included



Yes


Processor



Compatible processor series



Intel� Celeron�, Intel� Core� i5, Intel� Core� i7, Intel� Core� i9, Intel� Pentium�


Maximum number of SMP processors



1


Processor manufacturer



Intel


Processor socket



LGA 1200 (Socket H5)


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



23.6 cm


Product Width



20.2 cm


Rear panel I/O ports



Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


HDMI version



2.0b


Headphone outputs



1


Microphone in



Yes


PS/2 ports quantity



1


USB 2.0 ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


USB connector type



USB Type-A


VGA (D-Sub) ports quantity



1


Storage controllers



Number of storage drives supported



7


Supported storage drive interfaces



M.2, SATA


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


MSI


Warranty



1 Year(s)
