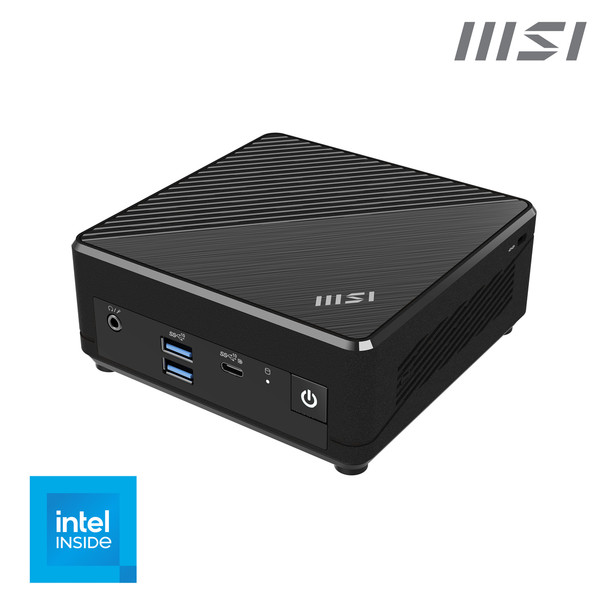

MSI Cubi N ADL S Intel N100 Barebone SFF Mini PC Fanless Type C USB 3.2 Gen2 HDM CUBI N ADL S N100 BB

Cubi N ADL S: The Energy Efficient Mini-PC

The MSI Cubi N ADL S is a small yet powerful mini-desktop with an incredibly compact 0.66L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & triple-monitor setups).

The Cubi N ADL S N100 BB configuration is a barebone equipped with an Intel N100 processor and fanless heatsink, allowing upto 16GB of DDR4-3200MHz memory, either M.2 / 2.5' SSD storage, Intel Wi-Fi 9462 & Bluetooth 5.1 connectivity.

The easy-to-upgrade SFF case can house both M.2 (with auto switch) & 2.5-inch SSD storage, as well as up to 16 GB of system memory (1 x DDR4 3200MHz SO-DIMMs), and is VESA-mountable for a cleaner desktop.

Thanks to its cooling-optimized layout and low-noise fan, the MSI Cubi N ADL is not only an energy-efficient computing solution but is also very quiet, due to it's fanless heatsink design.

Front I/O connectivity includes a Mic-in/Headphone-out combo jack, USB 3.2 Gen 2 Type-C (DP Alt.) and dual USB 3.2 Gen 2 Type-A ports. The rear I/O features dual 1Gbps ethernet LAN ports, HDMI 2.1, DisplayPort 1.4, and dual USB 2.0 ports.

Features


Featuring Intel Alder Lake Processors


Fanless heatsink for silent operation


Support 4K UHD Display


Support up to three displays that allows you to see more and do more


Dual network solution for both internet and intranet


Get all the performance benefits from USB 3.2 Gen 2 and enjoy the best data transmission experience


dTPM 2.0 design secures your confidential data with encryption keys


Supports standard VESA-mount



Processor


Processor lithography
nm


Built-in processor

Yes


Processor frequency

3.4 GHz


Processor model

N100


Processor threads

4


Processor manufacturer

Intel


Processor cores

4



Memory


Number of memory slots

1


Maximum internal memory
GB


Memory slots type

SO-DIMM


Supported memory clock speeds

3200 MHz



Other features


Country of origin

China



Ports & interfaces


HDMI ports quantity

1


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

2


USB 3?2 Gen 2 (3?1 Gen 2) Type-C ports quantity

1


DisplayPort version

1.4


DisplayPorts quantity

1


Ethernet LAN (RJ-45) ports

2


HDMI version

2.1


DVI port

No


DC-in jack

Yes


Combo headphone/mic port

Yes


USB 2?0 ports quantity

2



Graphics


On-board graphics card

Yes


On-board graphics card model

Intel- UHD Graphics


Graphics card family

Intel



Design


Chassis type

0.66L sized PC


Cable lock slot type

Kensington


Cable lock slot

Yes


VESA mounting

Yes


Cooling type

Passive


Product colour

Black


Panel mounting interface

75 x 75,100 x 100 mm


Product type

Mini PC barebone


Housing material

Plastic



Storage


Supported storage drive types

SSD


NVMe

Yes


Storage drive sizes supported

M.2


SSD form factor

M.2


Number of storage drives supported

1


Storage drive interface

M.2


Card reader integrated

No



Weight & dimensions


Package height

94 mm


Package depth

220 mm


Package width
5 mm


Package weight

1.39 kg


Height

53.7 mm


Width
4 mm


Depth
4 mm


Weight

540 g



Packaging content


Quick start guide

Yes


Keyboard included

No


Power cord included

Yes


Drivers included

Yes


AC adapter included

Yes


Display included

No


Mouse included

No



Network


Wi-Fi standards

Wi-Fi 5 (802.11ac)


LAN controller

Realtek RTL8111H


Bluetooth

Yes


Top Wi-Fi standard

Wi-Fi 5 (802.11ac)


Wi-Fi

Yes


Ethernet LAN

Yes


WLAN controller model

Intel Dual Band Wireless-AC 9462


Bluetooth version

5.1



Expansion slots


Number of M?2 (M) slots

1



Audio


Built-in speaker(s)

No



Performance


Motherboard chipset

Intel SoC


Compatible processor series

Intel Processor N


Number of processors supported

1


Motherboard form factor

NUC



Power


Number of power supply units

1


Power supply type

External AC adapter


Power supply

65 W
