MSI Cubi NUC 1M Intel Core 7 150U 14th Gen Barebone NUC SFF Mini Computer HTPC N CUBI NUC 1M I7 150U BB

Cubi NUC 1M: The Sustainable & Energy Efficient Mini-PC

The MSI Cubi NUC 1M is a small yet powerful mini-desktop with an incredibly compact 0.826L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & quadruple-monitor setups).

The Cubi NUC 1M i7 150U BB configuration is a barebone system equipped with an Intel- Core 7 processor 150U, but does not include required DDR5 memory, storage, or software. Features Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity.

The easy-to-upgrade SFF case can house both M.2 (1 x 2280, 1x 2242) & 2.5-inch storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMM slots), and is VESA-mountable for a cleaner desktop.

Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.

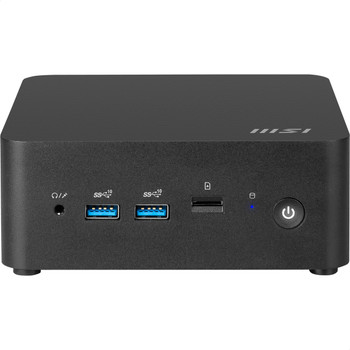

Front I/O connectivity includes a Mic-in/Headphone-out combo jack, 2x USB 10Gbps Type A and 1x Micro-SD card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 2 x HDMI 2.1 and 2x USB 10Gbps Type A

Features


INTEL MINI PC - The Cubi NUC 1M is a palm-sized mini PC featuring an Intel- Core 7 processor 150U CPU, NO RAM, NO Storage, NO OS or software pre-installed


The system supports 64GB of DDR5-5200 memory (1 x SO-DIMM slots) and supports 8K UHD display - ideal for watching movies; Thunderbolt 4 and HDMI 2.1 support quadruple monitor setups


Supports M.2 SSD storage to ensures faster loading speeds 1x M.2 2280 SSD (PCIE), 1x M.2 2242 SSD (PCIE) and 1 x 2.5" HDD/SSD


VESA mountable design and Mounting Bracket included (75mm x 75mm or 100mm x 100mm)


The front I/O panel features a 2x USB 10Gbps Type A and Micros-SD card reader; The rear I/O panel features 2x USB 10Gbps Type A as well. The compact 0.826L SFF case incorporates an efficient thermal design & low-noise fan with 21 dBA noise levels


WI-FI 6E AX211 & BLUETOOTH 5.3 - Network connectivity includes an Intel WI-FI 6E AX211 and dual 2.5G ethernet LAN ports


dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords



Processor


Processor cache
MB


Performance cores

2


Performance-core Max Turbo Frequency

5.4 GHz


Performance-core base frequency

1.8 GHz


Efficient cores

8


Processor family

Intel Core 7


Efficient-core Max Turbo Frequency

4 GHz


Efficient-core base frequency

1.2 GHz


Processor generation

Intel Core (Series 1)


Built-in processor

Yes


Processor model
0U


Processor threads



Processor manufacturer

Intel


Processor cores




Memory


Supported memory types

DDR5-SDRAM


Number of memory slots

2


Maximum internal memory

64 GB


Memory slots type

SO-DIMM


Supported memory clock speeds

5200 MHz



Other features


Country of origin

China


Introduction year
24


Warranty period

3 year(s)


Introduction month

July



Ports & interfaces


TV-out

No


Serial port via internal header

No


CardBus PCMCIA slot type

No


HDMI ports quantity

2


Thunderbolt 4 ports quantity

2


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

4


Microphone in

No


USB charging

No


Ethernet LAN (RJ-45) ports

2


S/PDIF out port

No


Consumer infrared headers

No


HDMI version

1.4b/2.1


DVI port

No


DC-in jack

Yes


Combo headphone/mic port

Yes



Graphics


On-board graphics card

Yes


On-board graphics card model

Intel Iris Xe Graphics


Graphics card family

Intel


Number of displays supported

4



Design


Chassis type

0.84L sized PC


Cable lock slot type

Kensington


Cable lock slot

Yes


VESA mounting

Yes


Cooling type

Active


Product colour

Black


Panel mounting interface

75 x 75,100 x 100 mm


Product type

Mini PC barebone


Housing material

Plastic


On/off switch

Yes


LED indicators

System



Storage


Supported storage drive types

HDD & SSD


NVMe

Yes


Storage drive sizes supported

2.5,M.2


SSD form factor

M.2


Number of storage drives supported

3


Storage drive interface

M.2, Serial ATA, Serial ATA II, Serial ATA III


Compatible memory cards

MicroSD (TransFlash)


Card reader integrated

Yes



Weight & dimensions


Package height

94 mm


Package depth

220 mm


Package width
5 mm


Package weight

1.45 g


Height

50.1 mm


Width
2.5 mm


Depth
5.6 mm


Weight

0.625 g



Packaging content


Quick start guide

Yes


Keyboard included

No


Power cord included

Yes


Drivers included

Yes


AC adapter included

Yes


Display included

No


Mouse included

No



Network


Wi-Fi standards

Wi-Fi 6E (802.11ax)


Copper ethernet cabling technology

2.5GBASE-T


LAN controller

Intel I226-V


Bluetooth

Yes


Top Wi-Fi standard

Wi-Fi 6E (802.11ax)


Wi-Fi

Yes


Near Field Communication (NFC)

No


Ethernet LAN

Yes


WLAN controller model

Intel Wi-Fi 6E AX211


Bluetooth version

5.3



Expansion slots


Number of M?2 (M) slots

2



Software


Windows operating systems supported

Windows 11, Windows 11 Enterprise, Windows 11 Home, Windows 11 Pro


Operating system installed

No



Audio


Built-in speaker(s)

No



Performance


Motherboard chipset

Intel SoC


Number of processors supported

1


Trusted Platform Module (TPM)

Yes


Trusted Platform Module (TPM) version

2.0


Motherboard form factor

NUC



Power


Number of power supply units

1


AC input voltage
0 - 240 V


AC input frequency

50/60 Hz


Power supply type

External AC adapter


Power supply
0 W
