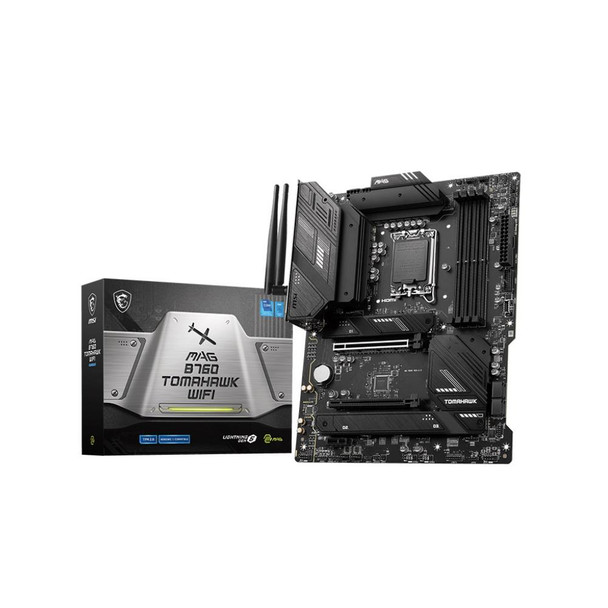

Msi MAG B760 TOMAHAWK WIFI Socket 1700/B760/Ddr5/S-Ata 6Gb/Atx MAG B760 TOMAHAWK WIFI

MSI 1700 MAG B760 TOMAHAWK WIFI
SKU: 122846
Product Group:Motherboards
Manufacturer:MSI
SKU:122846
Product Name:MSI MAG B760 TOMAHAWK WIFI (Socket 1700/B760/DDR5/S-ATA 6Gb/ATX)
Web Address:uk.msi.com
Model Number:MAG B760 TOMAHAWK WIFI
EAN:4711377034210
UPC:824142309285
Package Type:Retail
Warranty:3 Years
Chipset:Intel B760
CPU Interface:Socket 1700
CPU Support:https://www.msi.com/Motherboard/MAG-B760-TOMAHAWK-WIFI/support#cpu
RAM Technology:DDR5 (Dual Channel)
RAM Slots:4 x 288-pin
RAM Speeds:Up to DDR5 7000 (O.C.)
Max. Memory Support:128GB
PCI Express 3.0 x16:1
PCI Express 5.0 x16:1
PCI Express 4.0 x1:1
S-ATA 6Gb/s Port(s):4
RAID:Raid 0/1/5/10
M.2 Socket(s):2 x PCIe Gen 4.0 x4
1 x PCIe Gen 4.0 x4/SATA

On-Board LAN:Realtek 2.5Gbps LAN
Wireless NIC:Wi-Fi 6E
Wireless Technology:The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/b/g/n/ac/ax

Bluetooth:v5.3
On-Board Audio:Realtek ALC897 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output

On-Board Video:Intel processor with integrated graphics is required
Back USB 2.0 Port(s):4
Back USB 3.2 Port(s) Type-A Gen 2:4
Back USB 3.2 Port(s) Type-C Gen 2x2:1
Back HDMI Port(s):1
Back DisplayPort(s):1
Back LAN Port(s):1
Back Audio Jack(s):5
Back S/PDIF Output Port(s):1
Back Other Port(s):Wi-Fi / Bluetooth Antenna
24-pin ATX Power:1
8-pin ATX Power:2
USB 2.0 Header(s):4
USB 3.2 Header(s) Gen 1:2
USB 3.2 Header(s) Gen 2:1
Front Panel Audio Connector:1
TPM Header(s):1
Internal Other Port(s):1 x TBT connector
1 x Tuning Controller connector
2 x Addressable V2 RGB LED connector
2 x RGB LED connector

Form Factor:Standard ATX
Product Width:243.84mm
Product Length:304.8mm
Package Width:27cm
Package Length:34cm
Package Height:7cm
Gross Weight:1.77Kg
Special Features:Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS colour technology, delivering speeds up to 2400Mbps.
2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.
6 Layer PCB with 2oz Thickened Copper: An Enhanced PCB design provides higher performance and long-lasting system stability without any compromise.
Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
M.2 Shield FROZR: M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster.
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability, and compatibility.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.

Package Contents:Motherboard
Quick Installation Guide
SATA Cable
EZ M.2 Clip
Cable Stickers
Wi-Fi Antenna
