Msi

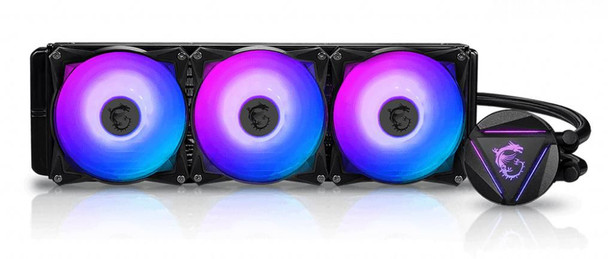

MSI MAG CORELIQUID 360R V2 Liquid Cpu Cooler '360Mm MAG CORELIQUID 360R V2
(No reviews yet)
Write a Review
- UPC:
- 4719072864088
- MPN:
- MAG CORELIQUID 360R V2
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
CONQUER THE BATTLEFIELD
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
The newly introduced MAG CORELIQUID has everything you're looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.
ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.
LGA 1700 COMPATIBLE
The MAG CORELIQUID R Series liquid cooler provides out of box support for LGA 1700.
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
DIY 2.0 � INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
MORE SILENCE THAN EXPECTED
MAG CORELIQUID 360R V2's noise level is significantly lower than that of competitor's by 10%.
COOLING YOU CAN'T HEAR
For those who prefer a quieter environment, a bundled noise reducer cable changes the fans� speed to produce less sound while still providing good airflow.
EXTENSIVE COMPATIBILITY
Robust yet built for flexibility, MAG CORELIQUID has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
Design
Fan connector
4-pin
Illumination LED
Yes
Number of fans
3 fan(s)
Product colour
Black
Radiator material
Aluminum
Logistics data
Harmonized System (HS) code
84733080
Package dimensions
Gross Weight (Package, kg)
0.26 kg
Performance
Compatible processor series
AMD Ryzen 7 5th Gen, 3rd Generation AMD Ryzen� 9, AMD Ryzen 9 5th Gen, 3rd Gen AMD Ryzen� Threadripper�, Intel� Core� i7, Intel� Core� i9
Fan bearing technology
Ball bearing
Fan diameter
12 cm
Fan diameter 2
12 cm
Fan noise level (max)
34.3 dB
Fan noise level (min)
14.3 dB
Fan speed (max)
2000 RPM
Fan speed (min)
500 RPM
Maximum air pressure
2.39 mmH2O
Maximum airflow
78.73 cfm
Minimum air pressure
0.23 mmH2O
Minimum airflow (imperial)
21.63 cfm
Pulse-width modulation (PWM) support
Yes
Pump bearing technology
Ceramic bearing
Pump connector
3-pin
Pump motor speed
4200 RPM
Pump noise level
18 dB
Suitable location
Motherboard, Processor
Supported processor sockets
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+, Socket SP3, Socket TR4, Socket sTRX4
Type
Liquid cooling kit
Power
Fan current
0.15 A
Fan power consumption
1.8 Watt
Fan voltage
12 V
Pump current
340 mA
Pump power consumption
4.08 Watt
Pump voltage
12 V
Product dimensions
Net Weight (Product, kg)
0.2 kg
Vendor information
Brand Name
MSI
Warranty
1 Year(s)
Weight & dimensions
Fan dimensions (W x D x H)
120 x 120 x 25 mm
Radiator depth
12 cm
Radiator height
2.7 cm
Radiator width
39.4 cm
Tube length
40 cm
Waterblock depth
6.682 cm
Waterblock height
4.858 cm
Waterblock width
8.057 cm
View AllClose
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
The newly introduced MAG CORELIQUID has everything you're looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.
ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.
LGA 1700 COMPATIBLE
The MAG CORELIQUID R Series liquid cooler provides out of box support for LGA 1700.
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
DIY 2.0 � INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
MORE SILENCE THAN EXPECTED
MAG CORELIQUID 360R V2's noise level is significantly lower than that of competitor's by 10%.
COOLING YOU CAN'T HEAR
For those who prefer a quieter environment, a bundled noise reducer cable changes the fans� speed to produce less sound while still providing good airflow.
EXTENSIVE COMPATIBILITY
Robust yet built for flexibility, MAG CORELIQUID has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
Design
Fan connector
4-pin
Illumination LED
Yes
Number of fans
3 fan(s)
Product colour
Black
Radiator material
Aluminum
Logistics data
Harmonized System (HS) code
84733080
Package dimensions
Gross Weight (Package, kg)
0.26 kg
Performance
Compatible processor series
AMD Ryzen 7 5th Gen, 3rd Generation AMD Ryzen� 9, AMD Ryzen 9 5th Gen, 3rd Gen AMD Ryzen� Threadripper�, Intel� Core� i7, Intel� Core� i9
Fan bearing technology
Ball bearing
Fan diameter
12 cm
Fan diameter 2
12 cm
Fan noise level (max)
34.3 dB
Fan noise level (min)
14.3 dB
Fan speed (max)
2000 RPM
Fan speed (min)
500 RPM
Maximum air pressure
2.39 mmH2O
Maximum airflow
78.73 cfm
Minimum air pressure
0.23 mmH2O
Minimum airflow (imperial)
21.63 cfm
Pulse-width modulation (PWM) support
Yes
Pump bearing technology
Ceramic bearing
Pump connector
3-pin
Pump motor speed
4200 RPM
Pump noise level
18 dB
Suitable location
Motherboard, Processor
Supported processor sockets
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+, Socket SP3, Socket TR4, Socket sTRX4
Type
Liquid cooling kit
Power
Fan current
0.15 A
Fan power consumption
1.8 Watt
Fan voltage
12 V
Pump current
340 mA
Pump power consumption
4.08 Watt
Pump voltage
12 V
Product dimensions
Net Weight (Product, kg)
0.2 kg
Vendor information
Brand Name
MSI
Warranty
1 Year(s)
Weight & dimensions
Fan dimensions (W x D x H)
120 x 120 x 25 mm
Radiator depth
12 cm
Radiator height
2.7 cm
Radiator width
39.4 cm
Tube length
40 cm
Waterblock depth
6.682 cm
Waterblock height
4.858 cm
Waterblock width
8.057 cm
