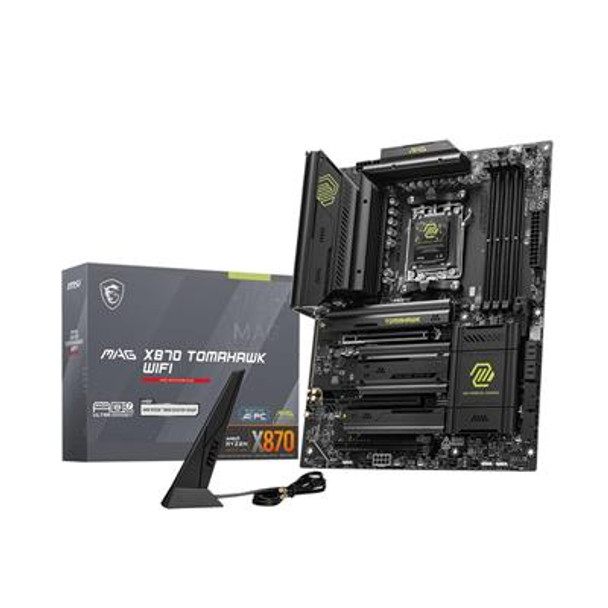

Msi MAG X870 TOMAHAWK WIFI Socket Am5/X870/Ddr5/S-Ata 6Gb/S/Atx MAG X870 TOMAHAWK WIFI

Product Group:

Motherboards



Manufacturer:

MSI



SKU:
5594


Product Specifications



Product Name:

MSI MAG X870 TOMAHAWK WIFI (Socket AM5/X870/DDR5/S-ATA 6Gb/s/ATX)



Web Address:

uk.msi.com



Model Number:

MAG X870 TOMAHAWK WIFI



EAN:

4711377254557



UPC:

824142380499



Package Type:

Retail



Warranty:

3 Years



Chipset:

AMD X870



CPU Interface:

Socket AM5



CPU Support:

https://www.msi.com/Motherboard/MAG-X870-TOMAHAWK-WIFI/support#cpu



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 8400+ (O.C.)



Max. Memory Support:

256GB



PCI Express 3.0 x16:

1



PCI Express 4.0 x16:

1



PCI Express 5.0 x16:

1



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/10



M.2 Socket(s):

2 x PCIe Gen 5.0 x4
2 x PCIe Gen 4.0 x4



On-Board LAN:

Realtek 8126-CG 5G LAN



Wireless NIC:

Wi-Fi 7



Wireless Technology:

The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps
Supports 802.11 a/b/g/n/ac/ax/be



Bluetooth:

v5.4



On-Board Audio:

Realtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output



On-Board Video:

Processor with integrated graphics is required



Back USB 2.0 Port(s):

4



Back USB 5Gbps Port(s) Type-A:

3



Back USB 10Gbps Port(s) Type-A:

2



Back USB 10Gbps Port(s) Type-C:

1



Back USB 40Gbps Port(s) Type-C:

2



Back HDMI Port(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

2



Back S/PDIF Output Port(s):

1



Back Button(s):

Clear CMOS
Flash BIOS



Internal I/O Connectors:

Wi-Fi / Bluetooth



24-pin ATX Power:

1



8-pin ATX Power:

2



PCIe Power Connector(s):

1 x 8-pin



USB 2.0 Header(s):

4



USB 5Gbps Header(s):

4



USB 20Gbps Header(s):

1



Front Panel Audio Connector:

1



TPM Header(s):

1



Internal Other Port(s):

3 x Addressable V2 RGB LED Connector
1 x RGB LED Connector



Form Factor:

Standard ATX



Product Width:

243.84mm



Product Length:

304.8mm



Package Width:

27cm



Package Length:

34cm



Package Height:

7cm



Gross Weight:

2.18Kg



Special Features:

Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors.
Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC).
Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material.
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience.
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna.
Lightning-Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2.
Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience.



Package Contents:

Motherboard
Quick Installation Guide
2 x SATA Cables
EZ M.2 Clip II
EZ M.2 Clip II Remover
M.2 Plate Screw
USB Drive
Cable Sticker
EZ Wi-Fi Antenna
1 to 3 EZ Conn-Cable (V2)
EZ Front Panel Cable
