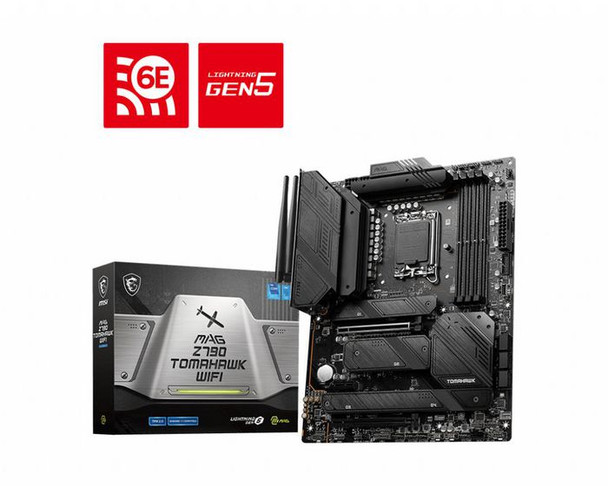

MSI MAG Z790 TOMAHAWK WIFI Motherboard Intel Z790 Lga MAG Z790 TOMAHAWK WIFI

The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked �keep-out-zone� allows for easy and safe installation and a perfect fit.

DIY 2.0 � INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G
Using USB 3.2 devices has never been faster! MPG X670 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.

BIOS



ACPI version



6.4


BIOS memory size



256 Mbit


BIOS type



UEFI AMI


System Management BIOS (SMBIOS) version



3.5


Expansion slots



Number of M.2 (M) slots



4


PCI Express x1 (Gen 4.x) slots



1


PCI Express x16 (Gen 5.x) slots



2


Features



Audio output channels



7.1 channels


Component for



PC


Motherboard chipset



Intel Z790


Motherboard chipset family



Intel


Motherboard form factor



ATX


Product colour



Black


Windows operating systems supported



Windows 10 x64, Windows 11 x64


Graphics



Parallel processing technology support



Not supported


Internal I/O



Chassis intrusion connector



Yes


CPU fan connector



Yes


Front panel audio connector



Yes


Front panel connector



Yes


Number of SATA II connectors



6


Number of SATA III connectors



7


RGB LED pin header



Yes


TPM connector



Yes


USB 2.0 connectors



2


USB 3.2 Gen 1 (3.1 Gen 1) connectors



2


USB 3.2 Gen 2 (3.1 Gen 2) connectors



1


Memory



ECC



No


Maximum internal memory



192 GB


Memory channels



Dual-channel


Non-ECC



Yes


Number of memory slots



4


Supported memory clock speed (max)



7200 MHz


Supported memory clock speeds



4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200


Supported memory types



DDR5-SDRAM


Unbuffered memory



Yes


Network



Bluetooth



Yes


Bluetooth version



5.3


Ethernet interface type



2.5 Gigabit Ethernet


Ethernet LAN



Yes


Top Wi-Fi standard



Wi-Fi 6 (802.11ax)


Wi-Fi



Yes


Wi-Fi standards



802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Packaging content



Cables included



SATA


Processor



Compatible processor series



Intel� Celeron�, Intel� Pentium� Gold


Maximum internal memory supported by processor



192 GB


Processor manufacturer



Intel


Processor socket



LGA 1700


Supported processor sockets



LGA 1700


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



30.48 cm


Product Width



24.38 cm


Rear panel I/O ports



DisplayPort version



1.4


DisplayPorts quantity



1


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


HDMI version



2.1


S/PDIF out port



Yes


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



4


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



1


USB 3.2 Gen 2x2 Type-C ports quantity



1


Storage controllers



Internal storage capacity



10 GB


RAID levels



0, 5, 10


RAID support



Yes


Supported storage drive interfaces



M.2, PCI Express


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


MSI


Warranty



1 Year(s)
