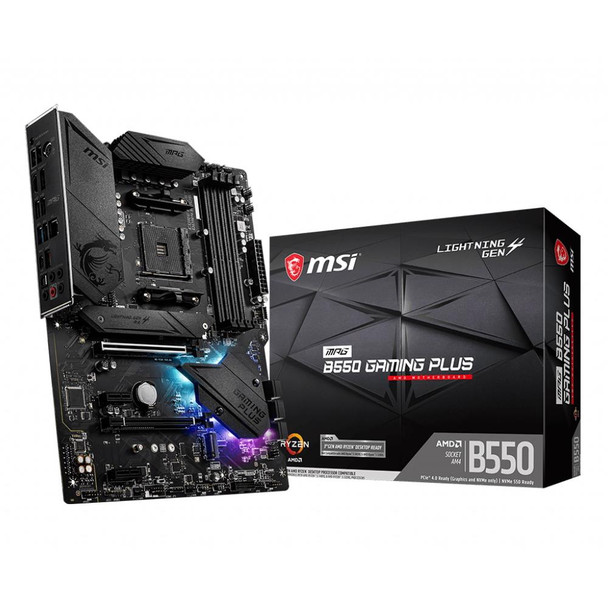

Msi MPG B550 GAMING PLUS Socket Am4/B550/Ddr4/S-Ata 600/Atx MPG B550 GAMING PLUS

MSI AM4 MPG B550 GAMING PLUS
SKU: 119042
Product Group:Motherboards
Manufacturer:MSI
SKU:119042
Product Name:MSI MPG B550 GAMING PLUS (Socket AM4/B550/DDR4/S-ATA 600/ATX)
Web Address:uk.msi.com
Model Number:MPG B550 GAMING PLUS
EAN:4719072731885
UPC:824142218600
Package Type:Retail
Warranty:3 Years
Chipset:AMD B550
CPU Interface:Socket AM4
CPU Support:https://www.msi.com/Motherboard/support/MPG-B550-GAMING-PLUS#support-cpu
RAM Technology:DDR4 (Dual Channel)
RAM Slots:4 x 288-pin
RAM Speeds:Up to DDR4 4400+
Max. Memory Support:128GB
PCI Express 3.0 x16:1
PCI Express 4.0 x16:1
PCI Express 3.0 x1:2
S-ATA 6Gb/s Port(s):6
RAID:Raid 0/1/10
M.2 Socket(s):2
On-Board LAN:1 x Realtek 8111H Gigabit LAN controller
On-Board Audio:Realtek ALC892 Codec
On-Board Video:AMD processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port:1
Back USB 2.0 Port(s):4
Back USB 3.2 Port(s) Type-A Gen 1:2
Back USB 3.2 Port(s) Type-A Gen 2:1
Back USB 3.2 Port(s) Type-C Gen 2:1
Back HDMI Port(s):1
Back DisplayPort(s):1
Back LAN Port(s):1
Back Audio Jack(s):5
Back S/PDIF Output Port(s):1
Back Button(s):Flash BIOS
24-pin ATX Power:1
8-pin ATX Power:1
USB 2.0 Header(s):2
USB 3.2 Header(s) Gen 1:2
Front Panel Audio Connector:1
TPM Header(s):1
Internal Other Port(s):1 x 4-pin RGB LED Connector
2 x 3-pin RAINBOW LED Connectors

Form Factor:Standard ATX
Product Width:244mm
Product Length:305mm
Package Width:27cm
Package Length:34.5cm
Package Height:9cm
Gross Weight:1.81Kg
Special Features:Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
Lightning Gen4 solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
Front Type-C USB 3.2 Gen 1 5Gbps: Compatible with the latest PC chassis and perfect for external drives and other mobile devices.
M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
EZ LED Control: One button to control LED on/off easily

Package Contents:Motherboard
Manual
Quick Installation Guide
MSI Case Badge
2 x SATA Cables
Support Disk
