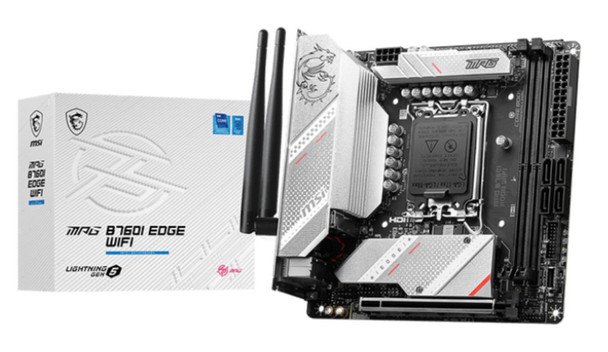

MSI MPG B760I EDGE WIFI Motherboard Intel B760 Lga MPG B760I EDGE WIFI

MPG B760I EDGE WIFI employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful.

BE AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

Pump Fan Support
Control watercooling pump speeds for best flow and noise control.

7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.

8-Layer Server Grade PCB
8-layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

BIOS



BIOS memory size



256 Mbit


BIOS type



UEFI AMI


System Management BIOS (SMBIOS) version



3.5


Expansion slots



PCI Express x1 (Gen 3.x) slots



2


Features



Audio chip



Realtek ALC897


Audio output channels



7.1 channels


Component for



PC


Motherboard chipset



Intel B760


Motherboard chipset family



Intel


Motherboard form factor



mini ATX


Power source type



ATX


Windows operating systems supported



Windows 10, Windows 11


Internal I/O



ATX Power connector (24-pin)



Yes


CPU fan connector



Yes


Front panel audio connector



Yes


Front panel connector



Yes


Number of SATA III connectors



4


RGB LED pin header



Yes


TPM connector



Yes


USB 2.0 connectors



2


USB 3.2 Gen 1 (3.1 Gen 1) connectors



2


USB 3.2 Gen 2 (3.1 Gen 2) connectors



1


Memory



Maximum internal memory



96 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



2


Supported memory clock speed (max)



7200 MHz


Supported memory clock speeds



7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800


Supported memory types



DDR5-SDRAM


Network



Bluetooth



Yes


Bluetooth version



5.3


Ethernet interface type



2.5 Gigabit Ethernet


Ethernet LAN



Yes


Top Wi-Fi standard



Wi-Fi 6E (802.11ax)


Wi-Fi



Yes


Wi-Fi standards



802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Processor



Compatible processor series



Intel� Celeron�, Intel� Pentium� Gold


Maximum number of SMP processors



1


Processor manufacturer



Intel


Processor socket



LGA 1700


Supported processor sockets



LGA 1700


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



17 cm


Product Width



17 cm


Rear panel I/O ports



DisplayPort version



1.4


DisplayPorts quantity



1


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



2


HDMI version



2.1


USB 2.0 ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



1


Storage controllers



RAID levels



0, 1, 5, 10


RAID support



Yes


Supported storage drive interfaces



M.2, SATA III


Vendor information



Brand Name


MSI


Warranty



1 Year(s)
