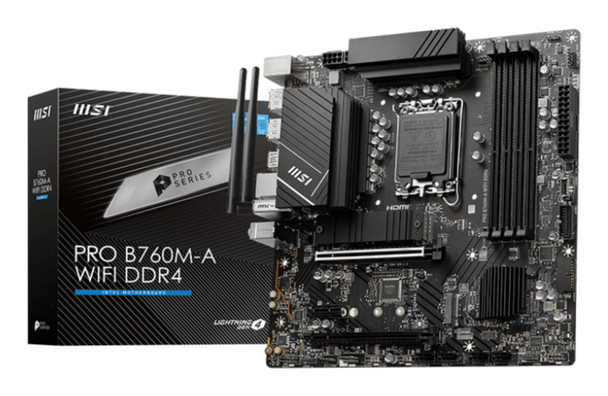

MSI PRO B760M-A WIFI DDR4 Motherboard Intel B760 Lga PRO B760M-A WIFI DDR4

PRO B790M-A WIFI DDR4
PRO B760M-A WIFI DDR4 is designed with tons of flexible tools and convenient Wi-Fi solution with DDR4 memory version

BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

CONTROL IN ONE CLICK
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

AUTO DETECT YOUR FAN
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked �keep-out-zone� allows for easy and safe installation and a perfect fit.

LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

USB FRONT TYPE-C
MSI PRO motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

BIOS



BIOS memory size



256 Mbit


BIOS type



UEFI AMI


System Management BIOS (SMBIOS) version



3.5


Expansion slots



PCI Express x1 (Gen 3.x) slots



2


Features



Audio chip



Realtek ALC897


Audio output channels



7.1 channels


Component for



PC


Motherboard chipset



Intel B760


Motherboard chipset family



Intel


Motherboard form factor



micro ATX


Power source type



ATX


Windows operating systems supported



Windows 10, Windows 11


Internal I/O



ATX Power connector (24-pin)



Yes


CPU fan connector



Yes


Front panel audio connector



Yes


Front panel connector



Yes


Number of SATA III connectors



4


RGB LED pin header



Yes


TPM connector



Yes


USB 2.0 connectors



4


USB 3.2 Gen 1 (3.1 Gen 1) connectors



4


USB 3.2 Gen 2 (3.1 Gen 2) connectors



1


Memory



Maximum internal memory



128 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



4


Supported memory clock speed (max)



5333 MHz


Supported memory clock speeds



2133, 2400, 2666, 2933, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 4000, 4200, 4266, 4400, 4600, 4800, 5000, 5066, 5200, 5333


Supported memory types



DDR4-SDRAM


Network



Bluetooth



Yes


Ethernet interface type



2.5 Gigabit Ethernet


Ethernet LAN



Yes


Wi-Fi



Yes


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Processor



Compatible processor series



Intel� Celeron�, Intel� Pentium� Gold


Maximum number of SMP processors



1


Processor manufacturer



Intel


Processor socket



LGA 1700


Supported processor sockets



LGA 1700


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



24.38 cm


Product Width



24.38 cm


Rear panel I/O ports



DisplayPorts quantity



2


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



2


USB 2.0 ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



2


Storage controllers



RAID levels



0, 1, 5, 10


RAID support



Yes


Supported storage drive interfaces



M.2, SATA III


Vendor information



Brand Name


MSI


Warranty



1 Year(s)
