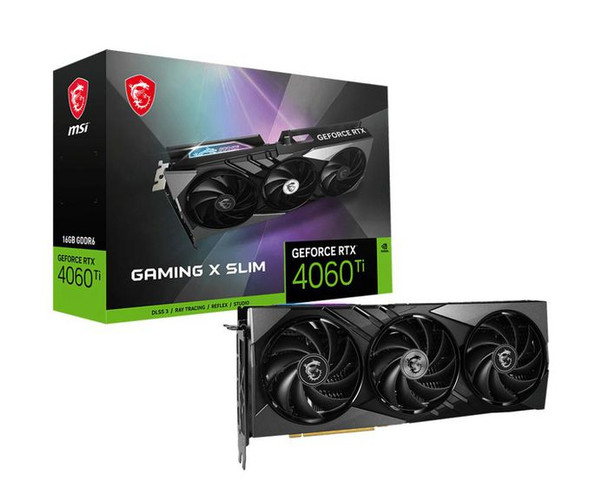

MSI RTX 4060 TI GAMING X SLIM 16G Lim 16G Graphics Card Nvidia RTX 4060 TI GAMING X SLIM 16G

Gaming Unbound
GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.

Elevate performance with TRI FROZR 3 cooling and its key features � TORX FAN 5.0, Core Pipe, and Airflow Control.

TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI�s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.

TORX FAN 5.0
TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.

AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.

ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.

UNRESTRICTED COOLING
A large airflow vent on the backplate allows exhaust air to pass through directly.

ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.

Design



Cooling technology



MSI TORX FAN 5.0


Cooling type



Active


Form factor



Full-Height/Full-Length (FH/FL)


Illumination



Yes


Number of fans



3 fan(s)


Product colour



Black, Grey


Memory



Data transfer rate



18 Gbit/s


Discrete graphics card memory



16 GB


Graphics card memory type



GDDR6


Memory bus



128 bit


Package dimensions



Gross Weight (Package, kg)



1.17 kg


Performance



DirectX version



12 Ultimate


Dual Link DVI



No


HDCP



Yes


NVIDIA G-SYNC



Yes


OpenGL version



4.6


TV tuner integrated



No


Ports & interfaces



DisplayPort version



1.4a


DisplayPorts quantity



3


HDMI ports quantity



1


HDMI version



2.1a


Interface type



PCI Express x8 4.0


Power



Minimum system power supply



550 Watt


Power consumption (typical)



165 Watt


Supplementary power connectors



1x 8-pin


Processor



CUDA



Yes


CUDA cores



4352


Graphics processor



GeForce RTX 4060 Ti


Graphics processor family



NVIDIA


Maximum displays per videocard



4


Maximum resolution



7680 x 4320 Pixels


Processor boost clock speed



2670 MHz


Processor frequency



2685 MHz


Product dimensions



Net Weight (Product, kg)



0.9 kg


Product Depth



12.5 cm


Product Height



4.6 cm


Product Width



30.7 cm


Vendor information



Brand Name


MSI


Warranty



1 Year(s)
