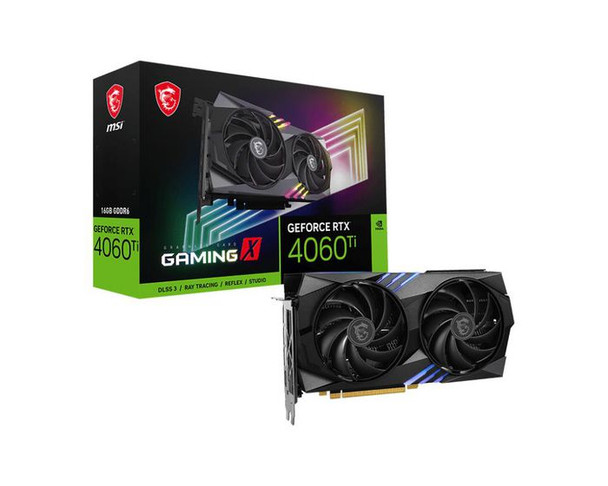

MSI V517-003R Geforce Rtx 4060 Ti Gaming X V517-003R

GAMING IN STYLE
Play with style! GAMING is upgraded with TWIN FROZR 9 to sustain intense performance during gaming and content creation.
A high-speed style matches high-performance capabilities for gamers who want to go all out.

STRENGTH AND ARTISTRY
MSI envisioned the GAMING series as the favored graphic cards solution for all sorts of gamers, including adventure seekers, esport competitors, livestream broadcasters, and more. GAMING reflects both the spirit of gamers and the intense performance within the cards with a styled exterior that erupts with colorful lights between bold lines and edges.

TWIN FROZR 9 THERMAL DESIGN
Stay cool and quiet. MSI�s TWIN FROZR 9 thermal design enhances heat dissipation all around the graphics card.

TORX FAN 5.0
TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.

COPPER BASEPLATE
FACING THE HEAT HEAD-ON
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.

KEEPING THE CORE COOL
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate and spread the heat along the full length of the heatsink.

Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors for optimizing the balance between cooling and quieter acoustics.

DrMos
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.

Effective Thermal Padding
An abundance of clay-based thermal pads provide additional heat dissipation for board components.

Hardened Defenses
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.

BRINGING IT ALL TOGETHER
MSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks.

Design



Cooling technology



MSI TORX FAN 5.0


Cooling type



Active


Form factor



Full-Height/Full-Length (FH/FL)


Illumination



Yes


Number of fans



2 fan(s)


Product colour



Black, Grey


Memory



Data transfer rate



18 Gbit/s


Discrete graphics card memory



16 GB


Graphics card memory type



GDDR6


Memory bus



128 bit


Package dimensions



Gross Weight (Package, kg)



1.17 kg


Performance



DirectX version



12 Ultimate


Dual Link DVI



No


HDCP



Yes


NVIDIA G-SYNC



Yes


OpenGL version



4.6


TV tuner integrated



No


Ports & interfaces



DisplayPort version



1.4a


DisplayPorts quantity



3


HDMI ports quantity



1


HDMI version



2.1a


Interface type



PCI Express x8 4.0


Power



Minimum system power supply



550 Watt


Power consumption (typical)



165 Watt


Supplementary power connectors



1x 8-pin


Processor



CUDA



Yes


CUDA cores



4352


Graphics processor



GeForce RTX 4060 Ti


Graphics processor family



NVIDIA


Maximum displays per videocard



4


Maximum resolution



7680 x 4320 Pixels


Processor boost clock speed



2640 MHz


Processor frequency



2655 MHz


Product dimensions



Net Weight (Product, kg)



0.9 kg


Product Depth



13 cm


Product Height



4.2 cm


Product Width



24.7 cm


Vendor information



Brand Name


MSI


Warranty



1 Year(s)
