Multibrackets 7350022735101 M VESA Super Slim Tilt & Turn 7350022735101

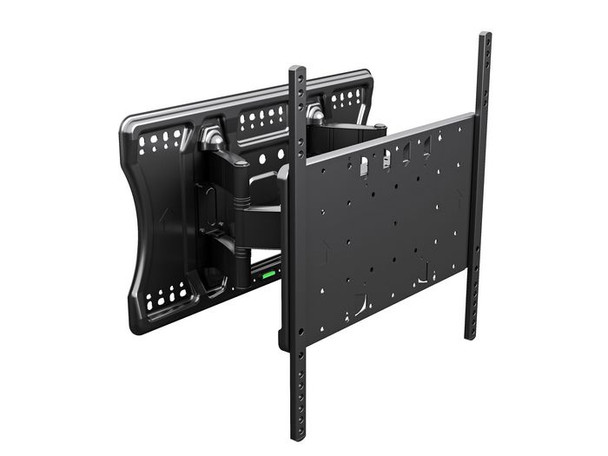

M VESA Super Slim Tilt & Turn HD (Heavy Duty) ends an era of bulky and heavy arms needed to flex, tilt and turn. If your aim is to find a discreet partner for that new LED or OLED in a light weight, super strong solution not visible from any side yet giving you a maximum flexibility then the M VESA Super Slim Tilt & Turn HD is your choice.

The uniquely designed low profile M VESA Super Slim Tilt & Turn HD mount fits most 40" and up to 85" flat panels up to 52 kgs. It is very well-suited for those applications where seamless integration counts the most. The M VESA Super Slim Tilt & Turn HD is part of the Super Slim Series of fixed, tilt and cantilever mounts offering a slim design without compromising on functionality. Moreover, this wallmount has an extended profile of 260 mm from the wall.

The specifications this product reveals are simply incredible.

Super Slim defines the minimal 50 mm of the low profile to wall. It extends to a maximum of 260 mm proving that this construction is truly flexible being so lightweight. Yet still, produced with high quality materials creating a super strong solution carrying screen up to 52 kgs.

Being both super slim and super flexible the built in functions of the wall mount allows you to optimize the screen for the perfect viewing angle. Wherever you are.

M VESA Super Slim Tilt & Turn HD is suitable for a wide range of screens sized 40" and up to 85". The VESA standards that are supported by this mount is 100 / 200 / 300 and up to 400 mm. If needed, the wall mount can be combined with an optional VESA extender kit which enables the 600x400 mm VESA standard. This means that M VESA Super Slim Tilt & Turn HD is suitable for most of the VESA standards including the rare ones.

Design



Product colour



Black


Ergonomics



Distance to the wall (max)



26 cm


Distance to the wall (min)



4.8 cm


Tilt adjustment



Yes


Tilt angle range



0 - 7 �


Logistics data



Products per pallet (EU)



48 pc(s)


Products per shipping (inner) case



4 pc(s)


Mounting



Maximum screen size



85 "


Maximum VESA mount



400 x 400 mm


Maximum weight capacity



52 kg


Minimum screen size



40 "


Minimum VESA mount



100 x 100 mm


Mounting type



Wall


Number of displays supported



1


Panel mounting interface



100 x 100, 200 x 100, 200 x 200, 300 x 300, 400 x 200, 400 x 400, 300 x 200


Other features



Turn angle



40 �


Package dimensions



Depth (package,cm)



60 cm


Gross Weight (Package, kg)



1.3 kg


Height (package,cm)



8 cm


Width (package,cm)



38 cm


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



5 cm


Product Height



29.4 cm


Product Width



59.5 cm


Vendor information



Brand Name


Multibrackets


Warranty



1 Year(s)
