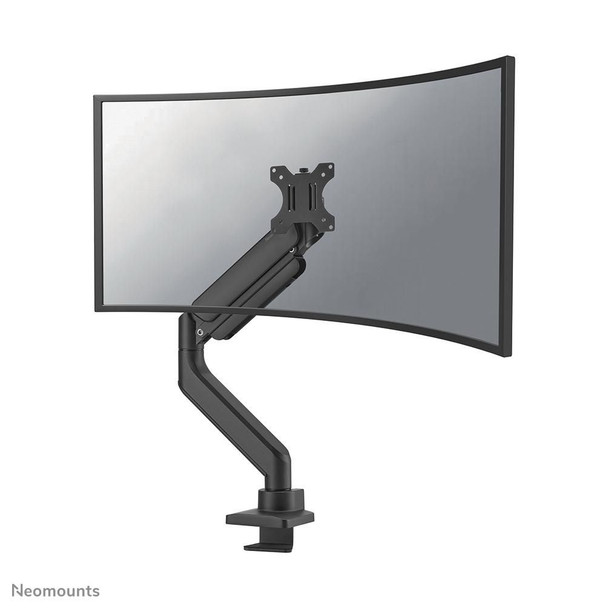

Neomounts by Newstar DS70PLUS-450BL1 Neomounts by Newstar Desk DS70PLUS-450BL1

The Neomounts DS70PLUS-450BL1 NEXT Core is a full motion desk mount for curved ultra-wide screens up to 49". The mount features a strengthened head specifically designed for curved ultra-wide screens and to support a higher maximum weight up to 18 kg (curved 14 kg). The versatile tilt (90�), rotate (360�) and swivel (180�) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (5,4-49,7 cm), to create the perfect working position.

The DS70PLUS-450BL1 NEXT Core features the nifty 180� stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

The DS70PLUS-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The packaging of the NEXT Core is 100% plastic free and entirely made from cardboard and paper.

For wall installation, the AWL75-450BL wall adapter is optionally available.

Design



Housing material



Steel


Product colour



Black


Ergonomics



Adjustable depth



Yes


Angle of rotation



80 �


Cable management



Yes


Depth adjustment range



54 - 511 mm


Height adjustment



Yes


Height adjustment range



261 - 555 mm


Height adjustment type



Gas spring


Rotating



Yes


Swivel angle range



-90 - 90 �


Swivelling



Yes


Tilt angle range



-45 - 45 �


Logistics data



Harmonized System (HS) code



HS7326909890


Master (outer) case height



58 cm


Master (outer) case length



27.5 cm


Master (outer) case net weight



16 kg


Master (outer) case width



46 cm


Products per master (outer) case



4 pc(s)


Products per pallet (EU)



64 pc(s)


Mounting



Desk thickness (max)



4.5 cm


Desk thickness (min)



1 cm


Distance to the wall (max)



56.8 cm


Distance to the wall (min)



10.8 cm


Maximum screen size



49 "


Maximum VESA mount



100 x 100 mm


Maximum weight capacity



18 kg


Minimum screen size



17 "


Minimum VESA mount



75 x 75 mm


Mounting



Clamp/Grommet


Mounting type



Desk


Number of displays supported



1


Panel mounting interface



100 x 100


Package dimensions



Depth (package,cm)



12.7 cm


Gross Weight (Package, kg)



20.5 kg


Height (package,cm)



44.5 cm


Width (package,cm)



28 cm


Packaging data



Quantity per pack



1 pc(s)


Product dimensions



Net Weight (Product, kg)



16 kg


Product Depth



56.8 cm


Product Height



65.3 cm


Product Width



12 cm


Vendor information



Brand Name


Neomounts by Newstar


Warranty



5 Year(s)


Weight & dimensions



Package net weight



5.1 kg
