Neomounts by Newstar WL35-550BL16 Screen Wall Mount tilt. VESA WL35-550BL16

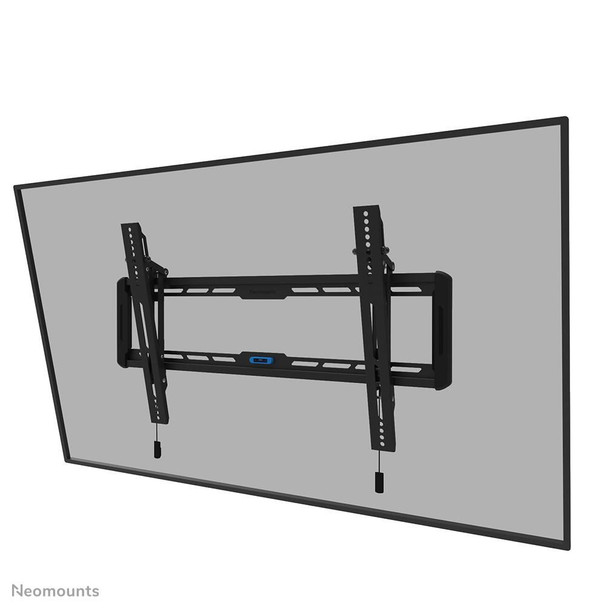

The Neomounts WL35-550BL16 is a tiltable wall mount for flat screens up to 75" with a maximum weight capacity of 70 kg. The versatile tilt (12�) technology allows you to create the optimum viewing angle.

The WL35-550BL16 has a depth of 3,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 600x400 mm.

The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. The integrated spirit level assures easy installation of the mount.

Design



Product colour



Black


Ergonomics



Distance to the wall (max)



3.3 cm


Height adjustment



No


Tilt angle range



0 - 12 �


Logistics data



Harmonized System (HS) code



7326909890


Master (outer) case height



23 cm


Master (outer) case length



28.5 cm


Master (outer) case net weight



12.5 kg


Master (outer) case width



77.3 cm


Products per master (outer) case



6 pc(s)


Products per pallet (EU)



144 pc(s)


Mounting



Maximum screen size



75 "


Maximum VESA mount



600 x 400 mm


Maximum weight capacity



70 kg


Minimum screen size



40 "


Minimum VESA mount



100 x 100 mm


Mounting type



Wall


Number of displays supported



1


Panel mounting interface



100 x 100, 100 x 150, 100 x 200, 120 x 120, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 300, 300 x 100, 300 x 200, 350 x 350, 400 x 200, 400 x 400, 400 x 300, 440 x 400, 500 x 400, 600 x 200, 600 x 300, 600 x 400


Package dimensions



Depth (package,cm)



20.8 cm


Gross Weight (Package, kg)



2.9 kg


Height (package,cm)



4.4 cm


Width (package,cm)



75.8 cm


Product dimensions



Net Weight (Product, kg)



2.8 kg


Product Depth



3.3 cm


Product Height



42.5 cm


Product Width



73.5 cm


Technical details



Package net weight



2.9 kg


Quantity per pack



1 pc(s)


Vendor information



Brand Name


Neomounts by Newstar


Warranty



5 Year(s)
