Neomounts by Newstar WL95-800BL1 by Newstar Wall Mounted video WL95-800BL1

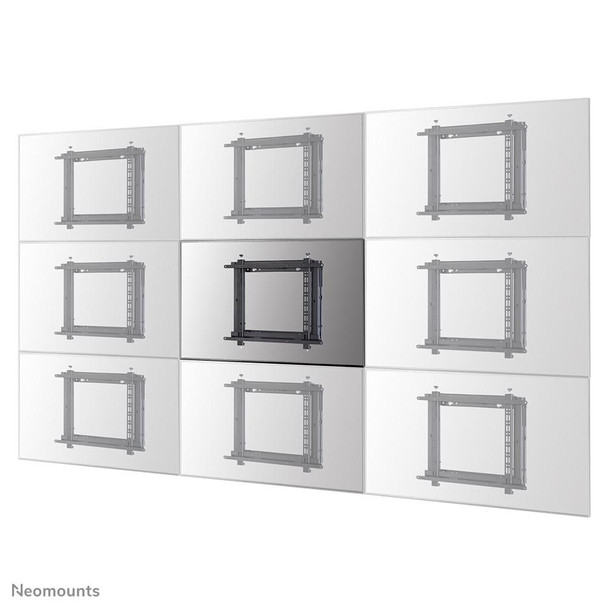

The Neomounts WL95-800BL1 is a push to pop out video wall mount for screens up to 70". The screen can be installed both in portrait and landscape orientation and additionally, toolless micro adjustment in height, depth, tilt and swivel is available for the perfect alignment.

The WL95-800BL1 has a depth of 7,8-26 cm and is suitable for screens that meet VESA hole pattern 200x200 up to 600x400 mm (landscape) or 400x600 mm (portrait). The video wall mount is packed pre-assembled and features keyhole slots to ensure fast and easy installation.

Design



Housing material



Steel


Product colour



Black


Ergonomics



Cable management



No


Distance to the wall (max)



26.6 cm


Distance to the wall (min)



7.8 cm


Height adjustment



Yes


Height adjustment type



Manual


Swivelling



Yes


Tilt adjustment



Yes


Logistics data



Harmonized System (HS) code



HS7326909890


Master (outer) case height



62 cm


Master (outer) case length



11 cm


Master (outer) case net weight



8.5 kg


Master (outer) case width



57 cm


Products per master (outer) case



1 pc(s)


Products per pallet (EU)



24 pc(s)


Mounting



Maximum screen size



70 "


Maximum VESA mount



600 x 400 mm


Maximum weight capacity



35 kg


Minimum screen size



42 "


Minimum VESA mount



200 x 200 mm


Mounting type



Wall


Number of displays supported



1


Panel mounting interface



200 x 200, 200 x 300, 200 x 400, 300 x 100, 300 x 200, 300 x 300, 350 x 350, 400 x 200, 400 x 400, 400 x 300, 600 x 200, 600 x 300, 600 x 400


Package dimensions



Depth (package,cm)



11 cm


Gross Weight (Package, kg)



9 kg


Height (package,cm)



62 cm


Width (package,cm)



57 cm


Product dimensions



Net Weight (Product, kg)



8 kg


Product Depth



8.4 cm


Product Height



51 cm


Product Width



62 cm


Technical details



Easy to install



Yes


Orientation



Landscape/Portrait


Package net weight



9.8 kg


Warranty period



5 year(s)


Vendor information



Brand Name


Neomounts by Newstar


Warranty



5 Year(s)
