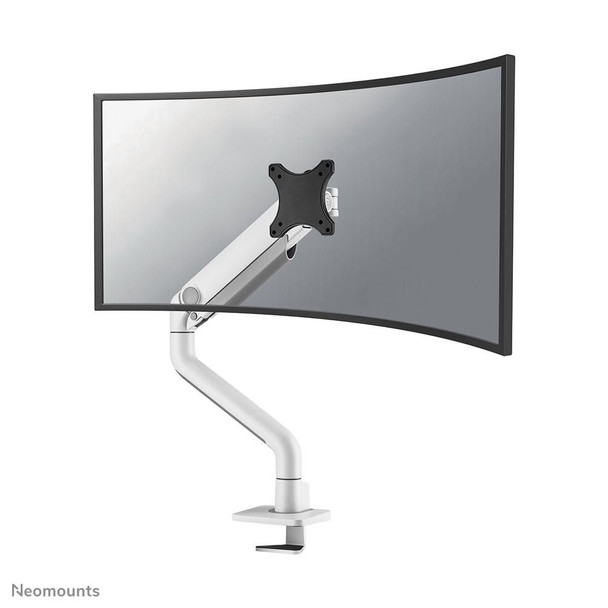

Neomounts Select DS70S-950WH1 Neomounts Select Desk Mount. DS70S-950WH1

The Neomounts DS70S-950WH1 NEXT One is a full motion desk mount for screens up to 49". The DS70S-950WH1 is a true all-in one solution for small to large displays. The NEXT One features a strengthened head specifically designed to also support curved ultra-wide screens and features a higher maximum weight capacity up to 18 kg (curved 15 kg). The versatile tilt (180�), rotate (360�) and swivel (180�) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20-52 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.

The DS70S-950WH1 features the nifty 180� stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.

The black VESA plate of the NEXT One integrate stylishly with the black back of your screen. The DS70S-950WH1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The packaging of the DS70S-950WH1 desk mount 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.

Design



Easy to install



Yes


Housing material



Aluminium


Product colour



White


Ergonomics



Adjustable depth



Yes


Angle of rotation



180 �


Cable management



Yes


Depth adjustment range



8.8 - 62.5 mm


Height adjustment



Yes


Height adjustment range



20 - 52 mm


Height adjustment type



Gas spring


Number of arms



1


Rotating



Yes


Swivel angle range



-90 - 90 �


Swivelling



Yes


Tilt adjustment



Yes


Tilt angle range



-90 - 90 �


Logistics data



Harmonized System (HS) code



HS7326909890


Master (outer) case height



49 cm


Master (outer) case length



29 cm


Master (outer) case net weight



15 kg


Master (outer) case width



35.5 cm


Products per master (outer) case



4 pc(s)


Products per pallet (EU)



80 pc(s)


Mounting



Clamp mount desk thickness (max)



5 cm


Distance to the wall (max)



65.6 cm


Distance to the wall (min)



11.9 cm


Grommet mount desk thickness (max)



5.5 cm


Maximum screen size



49 "


Maximum VESA mount



100 x 100 mm


Maximum weight capacity



18 kg


Minimum screen size



17 "


Minimum VESA mount



75 x 75 mm


Mounting



Clamp/Bolt-through


Mounting type



Desk


Number of displays supported



1


Panel mounting interface



75 x 75, 100 x 100


Package dimensions



Depth (package,cm)



12.2 cm


Gross Weight (Package, kg)



18.1 kg


Height (package,cm)



42.3 cm


Width (package,cm)



33.3 cm


Product dimensions



Net Weight (Product, kg)



15 kg


Product Depth



65.6 cm


Product Height



57.9 cm


Product Width



13.5 cm


Technical details



Warranty period



10 year(s)


Vendor information



Brand Name


Neomounts by Newstar


Warranty



10 Year(s)


Weight & dimensions



Package net weight



4.3 kg
