Neomounts Select DS75S-950BL2 Neomounts Select Desk Mount. DS75S-950BL2

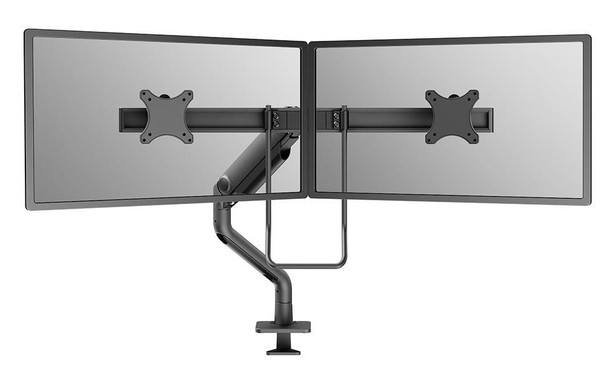

The Neomounts DS75S-950BL2 NEXT One is a full motion desk mount for two screens up to 27" with a maximum weight capacity of 8 kg per screen. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (19,1-52,7 cm) and depth adjustment (17,3-71 cm), to create the perfect working position. The displays can be individually adjusted in height, to guarantee perfect screen alignment. Additionally, due to the flexibility of the VESA heads, the screens can be positioned in large cockpit setup. The handle is height adjustable for maximum comfort.

The DS75S-950BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

The black VESA plates and crossbar of the NEXT One integrate stylishly with the black back of your screens. The DS75S-950BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The packaging of the DS75S-950BL2 desk mount is 100% plastic free and entirely made from cardboard and paper.The NEXT One products have an extended warranty period of 10-years.

Design



Easy to install



Yes


Housing material



Aluminium


Product colour



Black


Ergonomics



Adjustable depth



Yes


Angle of rotation



180 °


Cable management



Yes


Depth adjustment range



17.3 - 71 mm


Height adjustment



Yes


Height adjustment range



19.1 - 52.7 mm


Height adjustment type



Gas spring


Rotating



Yes


Swivel angle range



-90 - 90 °


Swivelling



Yes


Tilt adjustment



Yes


Tilt angle range



-60 - 60 °


Logistics data



Harmonized System (HS) code



HS7326909890


Master (outer) case height



90.5 cm


Master (outer) case length



26 cm


Master (outer) case net weight



11.1 kg


Master (outer) case width



24 cm


Products per master (outer) case



2 pc(s)


Products per pallet (EU)



36 pc(s)


Mounting



Clamp mount desk thickness (max)



5 cm


Distance to the wall (max)



74.1 cm


Distance to the wall (min)



20.4 cm


Grommet mount desk thickness (max)



5.5 cm


Maximum screen size



27 "


Maximum VESA mount



100 x 100 mm


Maximum weight capacity



8 kg


Minimum screen size



17 "


Minimum VESA mount



75 x 75 mm


Mounting



Clamp/Grommet


Mounting type



Desk


Number of displays supported



2


Panel mounting interface



75 x 75, 100 x 100


Package dimensions (verified)



Depth Verified



89 cm


Gross Weight Verified



7.2 kg


Height Verified



12 cm


Width Verified



22.5 cm


Product dimensions



Net Weight (Product, kg)



11 kg


Product Depth



73.9 cm


Product Height



108.5 cm


Product Width



83.3 cm


Technical details



Warranty period



10 year(s)


Vendor information



Brand Name


Neomounts by Newstar


Warranty



10 Year(s)


Weight & dimensions



Package net weight



7.1 kg
