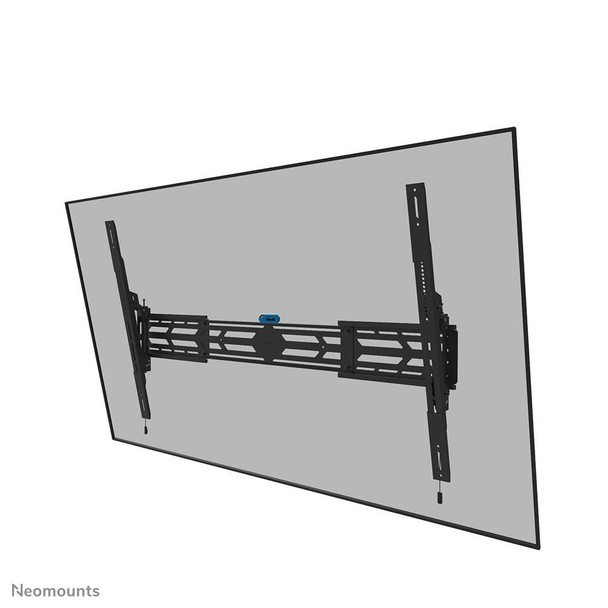

Neomounts Select WL35S-950BL19 Select Screen Wall Mount WL35S-950BL19

The Neomounts WL35S-950BL19 is a tiltable heavy-duty wall mount for flat screens up to 110" with a maximum weight capacity of 160 kg. The versatile tilt technology, with 3 lockable tilt presets (4�, 8� and 12�), allows you to create the optimum viewing angle. It is possible to install the screen in both portrait and landscape orientation. The mount features individual height adjustable brackets and level adjustment is available for the perfect installation.

The WL35S-950BL19 has a depth of 8,8 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100x100 to 1500x900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55" up to 110". It is possible to lock the mount using a padlock (not included).

The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.

Design



Accepts padlock



Yes


Product colour



Black


Ergonomics



Height adjustment



Yes


Height adjustment range



0 - 20 mm


Pivot angle



-3 - 3 �


Tilt adjustment



Yes


Tilt angle range



0 - 12 �


Logistics data



Harmonized System (HS) code



7326909890


Master (outer) case height



93.8 cm


Master (outer) case length



24.2 cm


Master (outer) case net weight



22.1 kg


Master (outer) case width



21.1 cm


Products per master (outer) case



2 pc(s)


Products per pallet (EU)



36 pc(s)


Mounting



Distance to the wall (max)



9 cm


Maximum screen size



110 "


Maximum VESA mount



1500 x 900 mm


Maximum weight capacity



160 kg


Minimum screen size



55 "


Minimum VESA mount



100 x 100 mm


Mounting type



Wall


Number of displays supported



1


Panel mounting interface



1500 x 900, 100 x 100, 100 x 150, 100 x 200, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 100, 300 x 200, 300 x 900, 300 x 300, 350 x 350, 400 x 200, 400 x 400, 400 x 300, 400 x 500, 400 x 600, 440 x 400, 460 x 640, 500 x 400, 600 x 200, 600 x 300, 600 x 400, 600 x 600, 600 x 500, 680 x 300, 800 x 200, 800 x 400, 800 x 600, 800 x 800, 800 x 500, 900 x 600, 1000 x 400, 1000 x 600, 1000 x 700, 1000 x 800, 1200 x 600, 1200 x 800, 1400 x 800


Suitable for TV



Yes


Other features



Width adjustment range



893 - 1600 mm


Package dimensions



Depth (package,cm)



9.8 cm


Gross Weight (Package, kg)



13 kg


Height (package,cm)



91.8 cm


Width (package,cm)



22.2 cm


Product dimensions



Net Weight (Product, kg)



11 kg


Product Depth



9 cm


Product Height



93.6 cm


Product Width



160 cm


Technical details



Warranty period



5 year(s)


Vendor information



Brand Name


Neomounts by Newstar


Warranty



5 Year(s)


Weight & dimensions



Package net weight



12.5 kg
