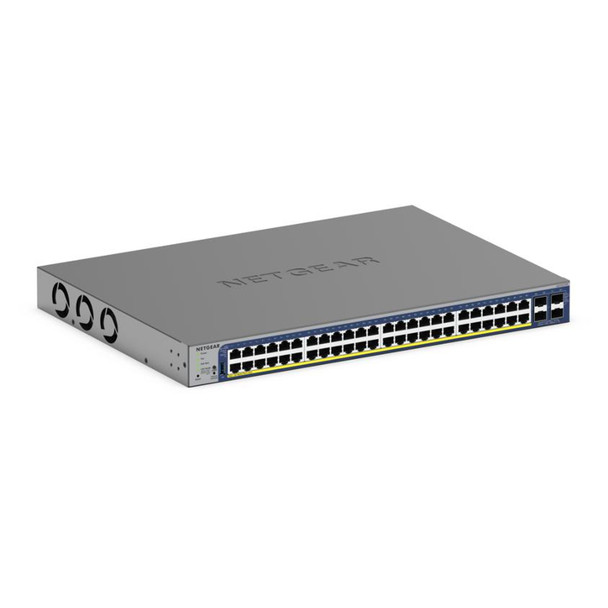

NETGEAR 52-Port PoE Gigabit/10G Stackable Smart Switch GS752TXP Managed L2/L3/L4 GS752TXP-300EUS

48-Port Gigabit Ethernet PoE+ Smart Switch w/ optional Remote/Cloud Management and 4 SFP+ Ports (380W)

Standalone Smart Switch designed for converged networks, big or small. 1-Year Insight subscription included.

Design


Stackable

Yes


Product colour

Black


Rack mounting

Yes



Weight & dimensions


Height

43 mm


Width

440 mm


Depth

345 mm


Weight

5.54 kg



Network


Networking standards

IEEE 802.1ab, IEEE 802.1as, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x


Flow control support

Yes


Broadcast storm control

Yes


Virtual LAN features

Voice VLAN


Link aggregation

Yes


Spanning tree protocol

Yes


VLAN support

Yes

G support

Yes


Full duplex

Yes


Port mirroring

Yes


Rate limiting

Yes



Data transmission


Packet buffer memory
MB


Number of static routes

32


MAC address table
000 entries


Latency (10 Gbps)

4.107 s


Static route

Yes



Power over Ethernet (PoE)


Power over Ethernet plus (PoE+) ports quantity

48


Total Power over Ethernet (PoE) budget

380 W


Power over Ethernet (PoE)

Yes



Operational conditions


Operating temperature (T-T)

0 - 50 C


Heat dissipation

2944.6 BTU/h


Operating relative humidity (H-H)

0 - 95


Storage relative humidity (H-H)

0 - 95


Storage temperature (T-T)

-20 - 70 C


Non-operating altitude

0 - 3000 m


Operating altitude

0 - 3000 m



Ports & interfaces


Basic switching RJ-45 Ethernet ports type
G Ethernet (100/1000/10000)


Basic switching RJ-45 Ethernet ports quantity

48


SFP+ module slots quantity

2



Security


DHCP features

DHCP client


Access Control List (ACL)

Yes


MAC address filtering

Yes


SSH/SSL support

Yes


IGMP snooping

Yes



Performance


Flash memory

64 MB


Mean time between failures (MTBF)
96949 h


Built-in processor

Yes


Noise level

36.6 dB



Management features


Switch layer

L2/L3/L4


Switch type

Managed



Power


Power supply included

Yes


Power source

AC


Power consumption (max)

51 W
