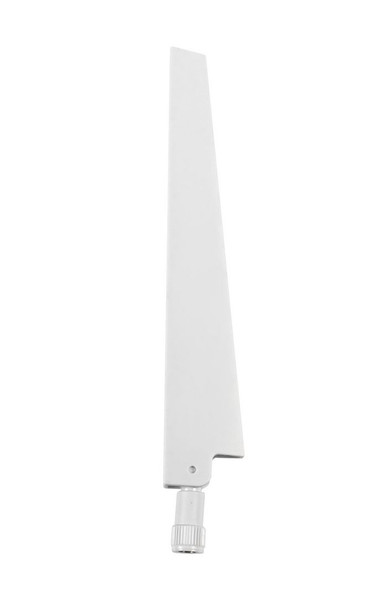

Netgear ANT2511AC-10000S Dual Band 11AC Ext Antenna f. ANT2511AC-10000S

The NETGEAR ANT2511AC antenna is designed to provide omni-directional wireless access with the WNDAP360/350/660 and WAC720/730/740 series Access Points. It will offer superior range and coverage for wireless client access around the Access Point. The lightweight, small form factor antennas allow the installation to be simple and intuitive.

This antenna is meant for 802.11bgn and 11ac to give you multiple options for maximizing the reach and performance of your wireless infrastructure devices. Every WLAN deployment is unique. With both directional and omni-directional antennas, low-loss cables, mounting hardware, and other accessories, installers can customize a wireless solution that meets the requirements of even the most challenging applications.

Features



Antenna connector type



RP-SMA


Antenna type



Omni-directional antenna


Compatible products



WNDAP360/350/660, WAC720/730/740


Polarization



Linear polarization


Product colour



White


Logistics data



Harmonized System (HS) code



85177100


Operational conditions



Operating temperature (T-T)



-20 - 60 �C


Package dimensions



Gross Weight (Package, kg)



0.5 kg


Packaging content



Quantity



1


Quantity per pack



1 pc(s)


Performance



Antenna gain level (max)



4 dBi


Frequency band



2.4 - 5 GHz


Horizontal beam width (2.4 GHz)



360 �


Horizontal beam width (5 GHz)



360 �


Networking standards



IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n


Vertical beam width (2.4 GHz)



75 �


Vertical beam width (5 GHz)



22.5 �


Product dimensions



Net Weight (Product, kg)



0.4 kg


Product Depth



1.27 cm


Product Height



18.5 cm


Product Width



3.62 cm


Technical details



Harmonized System (HS) code



85177100


Vendor information



Brand Name


Netgear


Warranty



1 Year(s)
