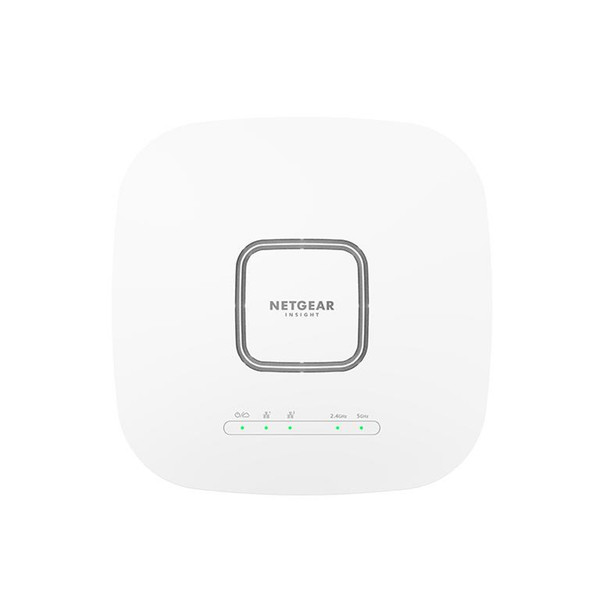

NETGEAR AX5400 5400 Mbit/s 600 Mbit/s 4800 Mbit/s 1010010002500 Mbit/s IEEE 802. WAX625-100EUS

MAXIMIZE PERFORMANCE
WITH A MULTI-GIG NETGEAR PoE++ SWITCH
2.5Gbps Ethernet port with Ultra60 PoE++ enables the fastest connection between the access point and switch

MESH CAPABILITY
Create a scalable and seamless network for your business. All Insight Managed Cloud access points can be connected with Ethernet or mesh among themselves

NETGEAR INSIGHT REMOTE MANAGEMENT
Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. Includes 1-year subscription.

MARKET LEADING SUPPORT FROM TRAINED EXPERTS
NETGEAR Access Points
include a market-leading 5-year warranty with 24/7 support from our highly trained experts.

Features


Ultimate speed and capacity with WiFi 6


Enterprise level security with WPA3 and 8 separate wireless networks (SSIDs)


High speed and easy wiring with a 2.5GbE port with PoE


Mesh capabilities for seamless roaming and highly scalable coverage areas


Monitor and manage your network from anywhere with NETGEAR Insight, a user-friendly cloud monitoring and management cloud portal and app



Design


Reset button

Yes


Placement

Ceiling, Wall


Product colour

White


LED indicators

Yes



Weight & dimensions


Height

51.4 mm


Width

241.2 mm


Depth

239.6 mm


Weight

819 g



Packaging content


Number of products included

1 pc(s)


Quick start guide

Yes


Mounting kit

Yes



Features


Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n


Maximum data transfer rate (2?4 GHz)

600 Mbit/s


Wi-Fi Multimedia (WMM)/(WME)

Yes


Maximum data transfer rate

5400 Mbit/s


Number of users

275 user(s)


Auto MDI/MDI-X

Yes


MIMO type

Multi User MIMO


5 GHz

Yes


Maximum data transfer rate (5 GHz)

4800 Mbit/s


Spread spectrum method

OFDM, OFDMA


VLAN support

Yes


MIMO

Yes


Cabling technology

10/100/1000Base-T(X)


2?4 GHz

Yes


Ethernet LAN data rates

10,100,1000,2500 Mbit/s



Operational conditions


Operating relative humidity (H-H)

0 - 40



Security


Security algorithms

EAP, PEAP, SSID, TLS, TTLS, WPA, WPA2, WPA3


Remote Authentication Dial-In User Service (RADIUS)

Yes


MAC address filtering

Yes


Auto Wireless Distribution System (WDS)

Yes


Service Set Identifier (SSID) features

SSID broadcast, SSID broadcast on/off



Ports & interfaces


Ethernet LAN (RJ-45) ports

2


DC-in jack

Yes



Management features


Web-based management

Yes



Power


DC voltage range

12 V


Input current

2.5 A


Power over Ethernet (PoE)

Yes



Antenna


Antenna type

Internal


Antennas quantity

2


Antenna gain level (max)

2.9 dBi
