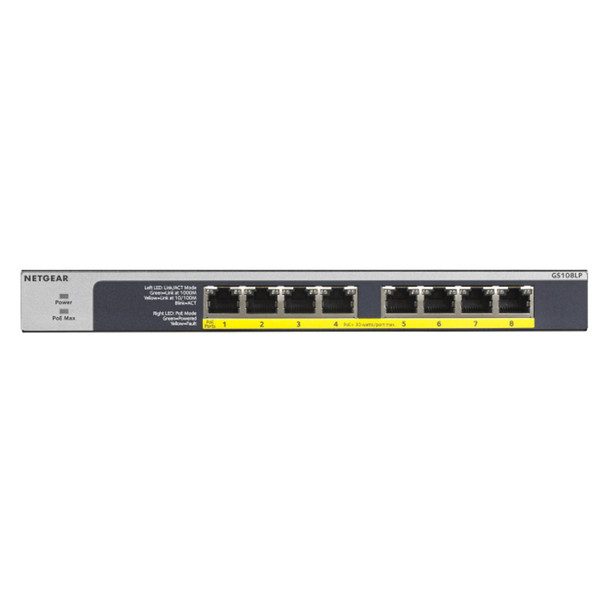

Netgear GS108LP Unmanaged Gigabit Ethernet 10/100/1000 Black Gray 1U Power over GS108LP-100EUS

Instant Connectivity with Reliable Performance
The NETGEAR Gigabit Unmanaged Switch series helps businesses cost-effectively expand their network to Gigabit speeds and higher port counts. These unmanaged Gigabit switches come in a wide range of models including desktop, wall-mount and rackmount form factors and 5 to 24 port configurations.

They are energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

High quality components and Energy Efficiency
NETGEAR switches are built with top quality components to assure a long life. They are built to last, and rigorously tested to provide the reliability businesses need.

NETGEAR Unmanaged Switches also support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected. It can further save energy when a short cable is used.

PoE+ Support
Power-Over-Ethernet (PoE) and PoE+ options available for powering IP Security Cameras, VoIP phones, wireless access points, and other PoE-powered devices.

These PoE+ Switches are not just flexible in terms of placement they are also flexible in terms of PoE power. All models have a built-in PoE power selector switch that allow for optional / interchangeable power adapters* (sold separately) that can be used to increase (or decrease) the PoE power available on the switch.

The flexible mounting system gives you the flexibility to place them in a desktop environment, wall mount them, or even rack-mount (accessories included).

Design


Product colour

Black, Grey


Wall mountable

Yes


Rack mounting

Yes


Form factor

1U


LED indicators

Yes



Weight & dimensions


Height

27 mm


Width

236 mm


Depth

102 mm


Weight

600 g



Logistics data


Harmonized System (HS) code

85176990



Network


Networking standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x


Flow control support

Yes


10G support

No


Ethernet LAN data rates

10,100,1000 Mbit/s



Data transmission


Packet forwarding

Yes


MAC address table

4000 entries


Store-and-forward

Yes


Jumbo frames support

Yes


Switching capacity

16 Gbit/s



Power over Ethernet (PoE)


Power over Ethernet plus (PoE+) ports quantity

8


Total Power over Ethernet (PoE) budget

60 W


Power over Ethernet (PoE)

Yes



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Heat dissipation

230.85 BTU/h


Operating relative humidity (H-H)

0 - 90


Storage relative humidity (H-H)

0 - 95


Storage temperature (T-T)

-20 - 70 �C


Operating altitude

0 - 1000 m



Ports & interfaces


Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)


Power connector

AC-in jack


Gigabit Ethernet (copper) ports quantity

8



Performance


Mean time between failures (MTBF)

2752476 h


Buffer size

192 KB


Plug and Play

Yes



Management features


Quality of Service (QoS) support

Yes


Switch type

Unmanaged



Power


Power consumption (typical)

67.5 W


Input current

1.25 A


Power source

DC/PoE


DC input voltage

54 V


Power consumption (max)

130 W
