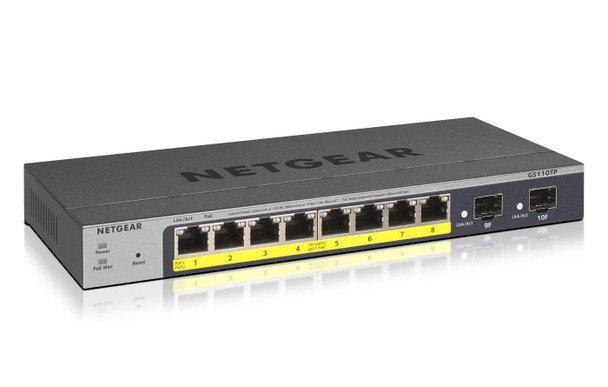

Netgear GS110TP-300EUS Netgear Pro GS110TPv3 - Switch GS110TP-300EUS

The NETGEAR GS110TPv3 8-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch comes with 8 PoE copper ports and 2 dedicated SFP ports for fiber uplinks. Cautious spender organizations can now deploy PoE devices with a reasonable PoE power budget of 55W. Each PoE port can provide up to 30 watts to power up the connected devices. Fanless, the GS110TPv3 supports perfectly silent desktop operation or wall mounting. The GS110TPv3 Smart Managed Pro Switch offers an easy-to-use, Web browser-based management GUI with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones and IP surveillance. This switch also comes with NETGEAR Insight Cloud management activation (free for the first two devices) for anytime remote management and monitoring through an intuitive app or Cloud Portal. Advanced features such as IPv4 Layer 2+ static routing including IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS110TPv3 features Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings and is backed by NETGEAR�s Lifetime Limited Warranty and 24/7 support including lifetime chat.

Data transmission



Jumbo frames support



Yes


MAC address table



8000 entries


Packet buffer memory



0.5 MB


Store-and-forward



Yes


Switching capacity



20 Gbit/s


Design



Certification



CE, FCC, VCCI Class B, C-Tick


LED indicators



Activity, LAN, Link, PoE, Power, Speed


Product colour



Grey


Rack mounting



No


Logistics data



Harmonized System (HS) code



85176990


Master (outer) case gross weight



9.73 kg


Master (outer) case height



30.9 cm


Master (outer) case length



35 cm


Master (outer) case width



27.4 cm


Products per master (outer) case



6 pc(s)


Management features



ARP inspection



Yes


Quality of Service (QoS) support



Yes


Switch layer



L2/L3/L4


Switch type



Managed


Web-based management



Yes


Multicast features



IPv4 multicast entries



32


Multicast support



Yes


Number of multicast groups filtered



256


Network



Broadcast storm control



Yes


Copper ethernet cabling technology



10BASE-T, 100BASE-TX, 1000BASE-T


Flow control support



Yes


Full duplex



Yes


Link aggregation



Yes


MAC address auto-learning supported



Yes


Networking standards



IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Number of VLANs



64


Port mirroring



Yes


Rate limiting



Yes


Spanning tree protocol



Yes


Operational conditions



Heat dissipation



237.38 BTU/h


Non-operating altitude



0 - 3000 m


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



0 - 95 %


Storage temperature (T-T)



-20 - 70 �C


Package dimensions



Depth (package,cm)



26.7 cm


Gross Weight (Package, kg)



1.51 kg


Height (package,cm)



8.7 cm


Width (package,cm)



16.6 cm


Packaging data



Manual



Yes


Performance



Flash memory



32 MB


Harmonized System (HS) code



85176990


Internal memory



128 MB


Mean time between failures (MTBF)



1200041 Hour


Memory type



RAM


Processor frequency



500 MHz


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


SFP module slots quantity



2


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


DC input voltage



54 V


Input current



1.25 A


Power consumption (max)



15.1 Watt


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) power per port



55 Watt


Power over Ethernet plus (PoE+) ports quantity



8


Total Power over Ethernet (PoE) budget



69.5 Watt


Product dimensions



Net Weight (Product, kg)



0.61 kg


Product Depth



2.7 cm


Product Height



23.6 cm


Product Width



10.1 cm


Protocols



Data link protocols



Ethernet, Fast Ethernet, Gigabit Ethernet


Management protocols



SNMP


Supported network protocols



HTTP, HTTPS


Switching protocols



SNMP


Security



Access Control List (ACL)



Yes


Access Control List (ACL) IPv6 entries



100


DHCP features



DHCP client


IGMP snooping



Yes


MAC address filtering



Yes


Security algorithms



802.1x RADIUS


Vendor information



Brand Name


Netgear


Warranty



1 Year(s)
