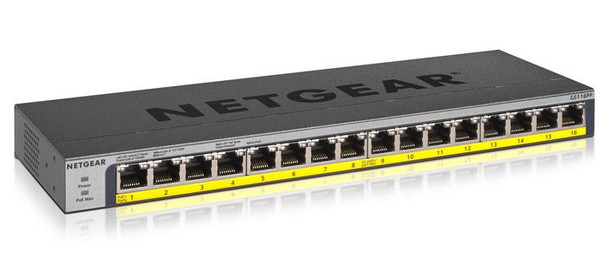

Netgear GS116PP-100EUS 16-PORT POE/POE+GB SWITCH GS116PP-100EUS

Instant Connectivity with Reliable Performance
The NETGEAR Gigabit Unmanaged Switch series helps businesses cost-effectively expand their network to Gigabit speeds and higher port counts. These unmanaged Gigabit switches come in a wide range of models including desktop, wall-mount and rackmount form factors and 5 to 24 port configurations.

They are energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

High quality components and Energy Efficiency
Unmanaged Gigabit switches are built with Top Quality components to assure a long life. Unmanaged switches are built to last, and rigorously tested to provide the reliability businesses need.

NETGEAR Unmanaged Switches also support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active ports or when there is no link or no activity detected. It can further save energy when a short cable is used.

PoE+ Support (GS108LP,GS108PP,GS116LP,GS116PP)
Power-Over-Ethernet (PoE) and PoE+ options available for powering IP Security Cameras, VoIP phones, wireless access points, and other Ethernet-powered devices.

These PoE+ Switches are not just flexible in terms of placement they are also flexible in terms of PoE Power. Thanks to the interchangeable external Power Supply and with a built-in PoE selector they allow you to increase or decrease the PoE budget at any time.

The flexible mounting system gives you the flexibility to place them in a desktop environment, mounted in a rack (accessories included) or wall-mounted.

Data transmission



MAC address table



4000 entries


Switching capacity



32 Gbit/s


Design



Certification



CE, FCC, ICES-003, VCCI, RCM, BSMI, KC, CB, CE LVD, BSMI, EAC, RCM, KC, EN 60950-1


LED indicators



Y, Yes


Number of fans



1 fan(s)


Product colour



Black


Rack mounting



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch type



Unmanaged


Network



10G support



No


Ethernet LAN data rates



10, 100, 1000


Networking standards



IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x


Operational conditions



Heat dissipation



680.58 BTU/h


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



0 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



0 - 95 %


Storage temperature (T-T)



-20 - 70 �C


Package dimensions



Depth (package,cm)



38 cm


Gross Weight (Package, kg)



12.96 kg


Height (package,cm)



8.7 cm


Width (package,cm)



29.5 cm


Performance



Buffer size



1000 KB


Harmonized System (HS) code



85176990


Mean time between failures (MTBF)



2088514 Hour


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



16


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Power



DC input voltage



54 V


Input current



3.7 A


Power consumption (typical)



200 Watt


Power source



DC/PoE


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet plus (PoE+) ports quantity



16


Total Power over Ethernet (PoE) budget



183 Watt


Product dimensions



Net Weight (Product, kg)



2.955 kg


Product Depth



10.2 cm


Product Height



2.7 cm


Product Width



28.6 cm


Vendor information



Brand Name


Netgear


Warranty



1 Year(s)
