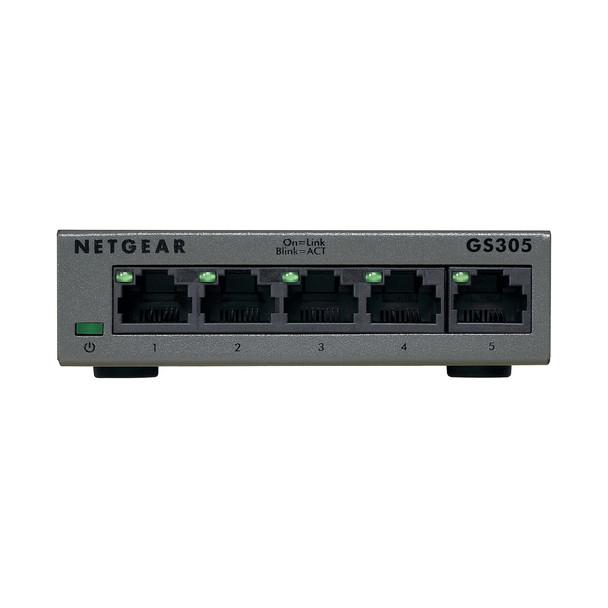

Netgear GS305v3 5-Port Gigabit Ethernet Switch GS305-300UKS

SOHO Ethernet Switch Series
Expanding Wired Connectivity for SOHO Networks

The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, etc. With these Plug-and-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 ports to 48 ports, these switches also support energy saving technologies to help you save power and money.

Features


Choice of Fast Ethernet and Gigabit Ethernet connectivity


Energy-efficient technology for power savings


Auto-MDI/MDIX eliminates the need for crossover cables


Non-blocking switching architecture for maximum throughput at wire speed


Auto-negotiation for automatic connection at the highest common speed between switch and an end device


Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices


Fanless design for silent operation


Desktop, wall-mountable or rack-mountable (GS324, GS348)



Data transmission


Packet buffer memory

0.128 MB


Jumbo frames

9216


Latency (1 Gbps)

2.6 �s


Packet forwarding rate (1 Gbps)

1448000 pps


MAC address table

2000 entries


Jumbo frames support

Yes


Switching capacity

10 Gbit/s



Power over Ethernet (PoE)


Power over Ethernet (PoE)

No



Ports & interfaces


Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)


Basic switching RJ-45 Ethernet ports quantity

5


Gigabit Ethernet (copper) ports quantity

5



Security


Queue scheduling algorithms

Weighted Round Robin (WRR)



Management features


Quality of Service (QoS) support

Yes


Switch type

Unmanaged



Design


Stackable

No


Product colour

Black


Wall mountable

Yes


Rack mounting

No


Housing material

Metal


Certification

CE Mark, FCC Part 15 Class B, IC Class B, RCM, VCCI, CB, CE LVD


LED indicators

Activity, Link, Power



Weight & dimensions


Height

29 mm


Width

101 mm


Depth

94 mm


Weight

250 g



Logistics data


Harmonized System (HS) code

85176990



Network


Networking standards

IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x


10G support

Yes


Full duplex

Yes


Auto MDI/MDI-X

Yes



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Heat dissipation

7.35 BTU/h


Operating relative humidity (H-H)

0 - 90


Storage relative humidity (H-H)

0 - 95


Storage temperature (T-T)

-20 - 70 �C


Operating altitude

0 - 3000 m



Performance


Mean time between failures (MTBF)

3831422 h


Fanless

Yes



Power


Input current

0.7 A


DC input voltage

5 V


Power consumption (max)

2.15 W



Packaging data


Package height

64 mm


Package depth

238 mm


Package width

142 mm


Package weight

484 g
