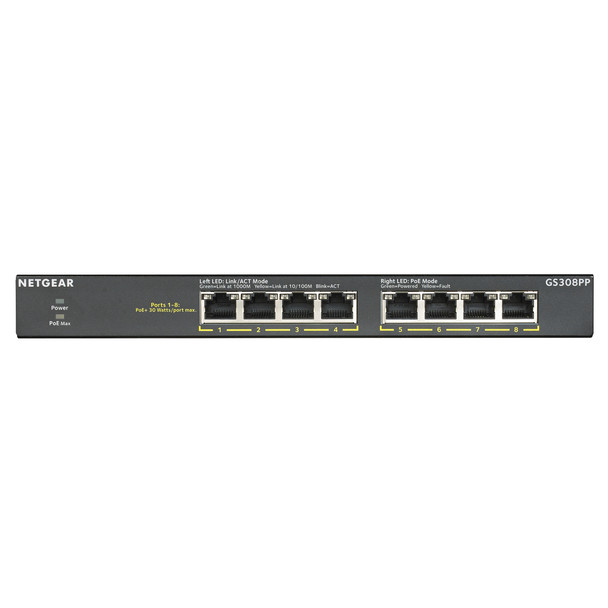

Netgear GS308PP Unmanaged Gigabit Ethernet 10/100/1000 Black Power over Ethernet GS308PP-100EUS

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.

The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.

NETGEAR's unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level

Features


ETHERNET PORT CONFIGURATION: 8 Gigabit ports


POWER-OVER-ETHERNET: 8 PoE+ ports with 83W total power budget, and includes NETGEAR FlexPoE making it expandable to 123W (w/separately purchased power supply module)


PLUG-AND-PLAY: Simple set up with no software to install or configuration needed


PoE POWER AUTO-BALANCE AND ALLOCATION - NETGEAR's unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs


VERSATILE MOUNTING OPTIONS: Supports desktop, wall or rackmount placement, and includes all the necessary mounting hardware in the box


SILENT OPERATION: The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments


ENERGY EFFICIENT: Designed to optimize power usage lowering its cost to operate. Most models are compliant with IEEE802.3az Energy Efficient Ethernet mode


BUILT TO LAST: Every NETGEAR Network switch is rigorously tested for reliability, quality, and performance



Design


Product colour

Black


Wall mountable

Yes


Rack mounting

Yes


Housing material

Metal


Certification

CE Mark, FCC Part 15 Class A, IC Class A, RCM, VCCI, BSMI, KC


LED indicators

Activity, Link, PoE, Power, Speed



Weight & dimensions


Height

27 mm


Width

236 mm


Depth

102 mm


Weight

600 g



Logistics data


Harmonized System (HS) code

85176990



Network


Networking standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x


Flow control support

Yes


Auto-negotiation

Yes


10G support

No


Full duplex

Yes


Auto MDI/MDI-X

Yes


Auto-sensing

Yes



Data transmission


Packet buffer memory

0.192 MB


Jumbo frames

9216


Latency (1 Gbps)

3 �s


Packet forwarding rate (1 Gbps)

1448000 pps


MAC address table

4000 entries


Jumbo frames support

Yes


Switching capacity

16 Gbit/s



Power over Ethernet (PoE)


Power over Ethernet plus (PoE+) ports quantity

8


Total Power over Ethernet (PoE) budget

130 W


Power over Ethernet (PoE) type supported

PoE+


Power over Ethernet (PoE)

Yes


Power over Ethernet (PoE) power per port

30 W



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Heat dissipation

300.6 BTU/h


Operating relative humidity (H-H)

0 - 90


Storage temperature (T-T)

-20 - 70 �C


Operating altitude

0 - 3000 m



Ports & interfaces


Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)


Basic switching RJ-45 Ethernet ports quantity

8


Power connector

DC-in jack



Performance


Mean time between failures (MTBF)

2752476 h



Management features


Quality of Service (QoS) support

Yes


Switch type

Unmanaged



Power


Input current

1.66 A


DC input voltage

54 V


Power consumption (max)

87.9 W
