Netgear

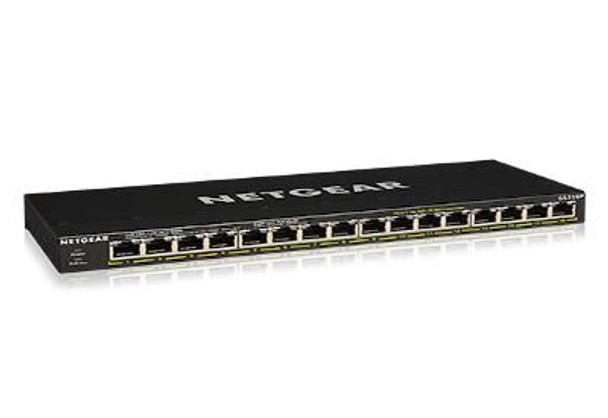

Netgear GS316P-100PES Gs316P Unmanaged Gigabit GS316P-100PES
- UPC:
- 0000000000000
- MPN:
- GS316P-100PES
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.
The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.
NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level
Data transmission
Jumbo frames
9216
Jumbo frames support
Yes
Latency (1 Gbps)
3.7 µs
MAC address table
4000 entries
Packet buffer memory
1 MB
Packet forwarding rate (1 Gbps)
1448000 pps
Switching capacity
32 Gbit/s
Design
Housing material
Metal
LED indicators
Y, Yes
Product colour
Black
Rack mounting
Yes
Wall mountable
Yes
Management features
Quality of Service (QoS) support
Yes
Switch type
Unmanaged
Network
10G support
No
Auto MDI/MDI-X
Yes
Flow control support
Yes
Full duplex
Yes
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Operational conditions
Heat dissipation
437.42 BTU/h
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
0 - 90 %
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Package dimensions
Gross Weight (Package, kg)
1.14 kg
Performance
Mean time between failures (MTBF)
2362192 Hour
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack
Power
DC input voltage
54 V
Input current
2.4 A
Power consumption (max)
127.9 Watt
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 Watt
Power over Ethernet plus (PoE+) ports quantity
16
Total Power over Ethernet (PoE) budget
200 Watt
Product dimensions
Net Weight (Product, kg)
0.88 kg
Product Depth
10.2 cm
Product Height
2.7 cm
Product Width
28.6 cm
Vendor information
Brand Name
Netgear
Warranty
1 Year(s)
View AllClose
The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.
NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level
Data transmission
Jumbo frames
9216
Jumbo frames support
Yes
Latency (1 Gbps)
3.7 µs
MAC address table
4000 entries
Packet buffer memory
1 MB
Packet forwarding rate (1 Gbps)
1448000 pps
Switching capacity
32 Gbit/s
Design
Housing material
Metal
LED indicators
Y, Yes
Product colour
Black
Rack mounting
Yes
Wall mountable
Yes
Management features
Quality of Service (QoS) support
Yes
Switch type
Unmanaged
Network
10G support
No
Auto MDI/MDI-X
Yes
Flow control support
Yes
Full duplex
Yes
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Operational conditions
Heat dissipation
437.42 BTU/h
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
0 - 90 %
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Package dimensions
Gross Weight (Package, kg)
1.14 kg
Performance
Mean time between failures (MTBF)
2362192 Hour
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack
Power
DC input voltage
54 V
Input current
2.4 A
Power consumption (max)
127.9 Watt
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 Watt
Power over Ethernet plus (PoE+) ports quantity
16
Total Power over Ethernet (PoE) budget
200 Watt
Product dimensions
Net Weight (Product, kg)
0.88 kg
Product Depth
10.2 cm
Product Height
2.7 cm
Product Width
28.6 cm
Vendor information
Brand Name
Netgear
Warranty
1 Year(s)
Additional Information
Shipping: |
Available to Order - Call for ETA |
Delivery: |
Available to Order - Call for ETA |
