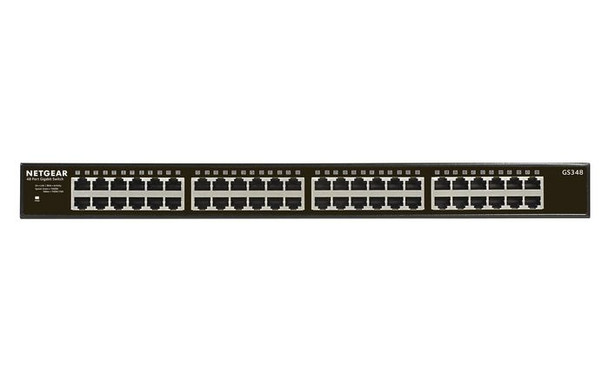

Netgear GS348-100EUS 48-PORT GB UNMANAGED SWITCH GS348-100EUS

Expanding Wired Connectivity for SOHO Networks
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.

- Auto-MDI/MDIX eliminates the need for crossover cables
- LED indicators for ease of use
- Energy-efficient technology for power savings
- Fanless design for silent operation
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Non-blocking switching architecture for maximum throughput at wire speed
- 802.1p QoS for traffic/frame prioritization
- Plug-and-play; no setup required
- Durable and rugged metal case
- Ideal for small office and home networks
- Standards-based technology ensures interoperability with any standards-based devices in the existing network
- GS316 and GS324 are wall-mountable
- GS324 and GS348 are rack-mountable (rackmount kit included)

Data transmission



Jumbo frames



9216


Jumbo frames support



Yes


Latency (1 Gbps)



4 �s


MAC address table



16000 entries


Packet forwarding rate (1 Gbps)



1448000 pps


Switching capacity



96 Gbit/s


Design



Form factor



1U


LED indicators



Activity, Link, Power


Product colour



Black


Rack mounting



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch type



Unmanaged


Network



10G support



No


Auto MDI/MDI-X



Yes


Ethernet LAN data rates



10, 100, 1000


Networking standards



IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x


Operational conditions



Heat dissipation



7866 BTU/h


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-20 - 70 �C


Package dimensions



Depth (package,cm)



51.3 cm


Gross Weight (Package, kg)



4.5 kg


Height (package,cm)



8.2 cm


Width (package,cm)



29.5 cm


Performance



Harmonized System (HS) code



85176990


Plug and Play



Yes


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



48


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Console port



RJ-45


Power connector



DC-in jack


Power



AC input frequency



50 - 60 Hz


AC input voltage



110 - 240 V


Input current



1 A


Power consumption (max)



23 Watt


Power consumption (typical)



8.81 Watt


Power source



AC


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



4.32 kg


Product Depth



20.4 cm


Product Height



4.32 cm


Product Width



44 cm


Vendor information



Brand Name


Netgear


Warranty



1 Year(s)
